SJS830100
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Circular Connectors - Housings
Description

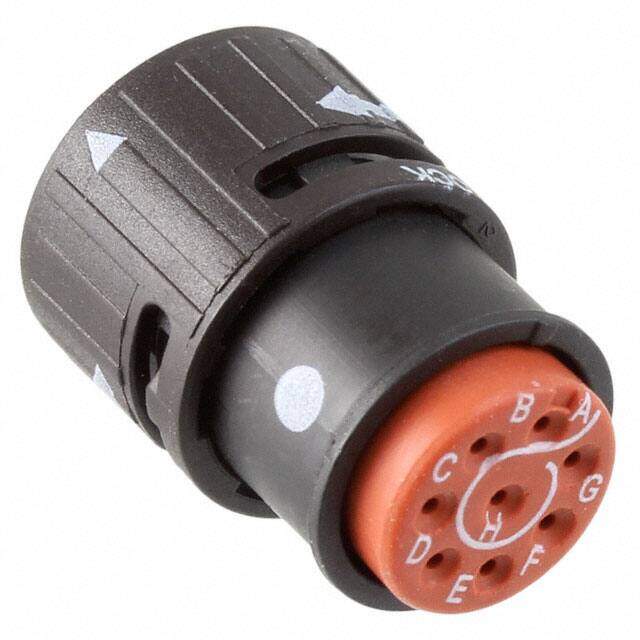

Lighting Connectors Luminus Size 22 8P Inline Plug
PDF
/
Buying Options
Total Price: USD $28.17
Unit Price: USD $28.16844
≥1 USD $28.16844
≥10 USD $26.574
≥100 USD $25.06981
≥500 USD $23.65077
≥1000 USD $22.31204
≥3000 USD $21.0491
Inventory: 237
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 15 Weeks
Physical
Contact Material Stainless Steel, Steel
Mount Cable, Free Hanging
Mounting Type Free Hanging (In-Line)
Contact Shape Circular
Shell Material Polyamide (PA66), Nylon 6/6
Housing Material Polyamide
Body Material Nylon, Polyamide
Technical
Operating Temperature -65°C~125°C
Packaging Bulk
Published 2009
Series Luminus
Feature Coupling Nut
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Crimp
Connector Type Plug Housing
Type For Female Sockets
Number of Positions 8
Max Operating Temperature 125°C
Min Operating Temperature -65°C
Color Black
Gender Male
Voltage - Rated 600V
Fastening Type Bayonet Lock
Contact Type Crimp
Orientation A
Shielding Unshielded
Ingress Protection IP67 - Dust Tight, Waterproof
Current Rating 5A
Shell Size - Insert 7
Number of Contacts 8
Housing Color Black
Note Contacts Not Included
Contact Size 22D
Wire/Cable Gauge 22 AWG
Compliance
Material Flammability Rating UL94 V-0
Radiation Hardening No
REACH SVHC Unknown
RoHS Status RoHS Compliant
Ratings Environment Sealed
