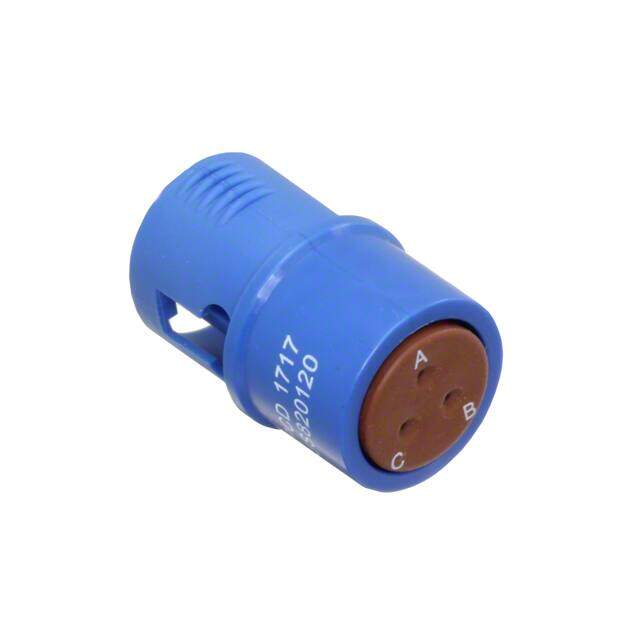

SJS820120
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Circular Connectors - Housings
Description
Lighting Connectors PLUG SZ 20; BLUE TRIPLE SPLICE
PDF
/
Buying Options
Total Price: USD $15.38
Unit Price: USD $15.3824
≥1 USD $15.3824
≥10 USD $13.32936
≥100 USD $12.63328
≥500 USD $12.45024
≥1000 USD $10.985568
≥3000 USD $10.253197
Inventory: 124
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 15 Weeks
Physical
Contact Material Stainless Steel, Steel
Mount Cable, Free Hanging
Mounting Type Free Hanging (In-Line)
Contact Shape Circular
Shell Material Polyamide (PA66), Nylon 6/6
Body Material Nylon, Polyamide
Technical
Operating Temperature -55°C~95°C
Packaging Bulk
Published 2007
Series Luminus
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Crimp
Connector Type Plug Housing
Type For Female Sockets
Number of Positions 3
Color Blue
Gender Male
Voltage - Rated 600V
Fastening Type Detent Lock
Contact Type Crimp
Orientation C
Shielding Unshielded
Ingress Protection IP67 - Dust Tight, Waterproof
Current Rating 7.5A
Shell Size - Insert 8
Number of Contacts 3
Housing Color Blue
Note Contacts Not Included
Contact Size 20
Dimensions
Length 27.432mm
Compliance
Material Flammability Rating UL94 V-0
Radiation Hardening No
REACH SVHC No SVHC
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
Ratings Environment Sealed
