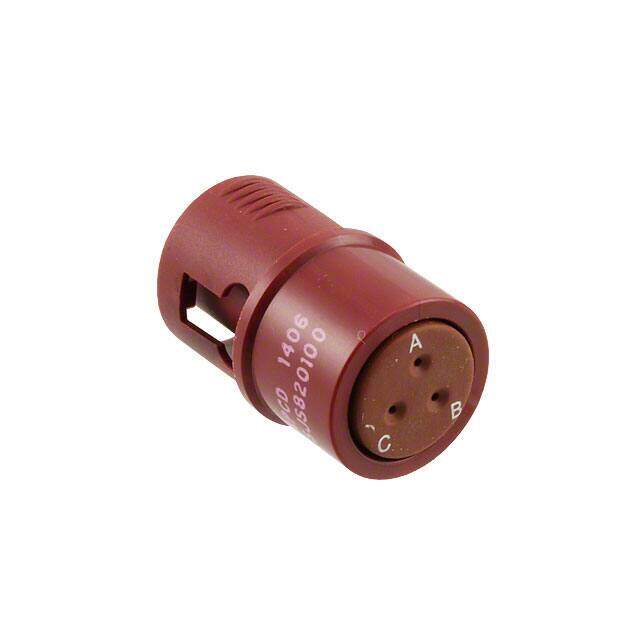

SJS820100
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Circular Connectors - Housings
Description
Lighting Connectors PLUG SZ 20; RED TRIPLE SPLICE
PDF
/
Buying Options
Total Price: USD $23.31
Unit Price: USD $23.30516
≥1 USD $23.30516
≥10 USD $21.986
≥100 USD $20.74151
≥500 USD $19.56746
≥1000 USD $18.45987
≥3000 USD $17.41497
Inventory: 56
Minimum: 1
-
+
Technical Details
Compliance
Ratings Environment Sealed
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
REACH SVHC Unknown
Radiation Hardening No
Material Flammability Rating UL94 V-0
Dimensions
Length 27.432mm
Technical
Contact Size 20
Note Contacts Not Included
Housing Color Red
Contact Gender Female
Number of Contacts 3
Shell Size - Insert 8
Current Rating 7.5A
Ingress Protection IP67 - Dust Tight, Waterproof
Shielding Unshielded
Orientation A
Contact Type Crimp
Fastening Type Detent Lock
Voltage - Rated 600V
Gender Male
Color Red
Min Operating Temperature -65°C
Max Operating Temperature 160°C
Number of Positions 3
Type For Female Sockets
Connector Type Plug Housing
Termination Crimp
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series Luminus
Published 2007
Packaging Bulk
Operating Temperature -55°C~95°C
Physical
Body Material Nylon, Polyamide
Shell Material Polyamide (PA66), Nylon 6/6
Contact Shape Circular
Mounting Type Free Hanging (In-Line)
Mount Cable, Free Hanging
Contact Material Stainless Steel, Steel
Supply Chain
Factory Lead Time 15 Weeks
