SJS720210
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Circular Connectors - Housings
Description

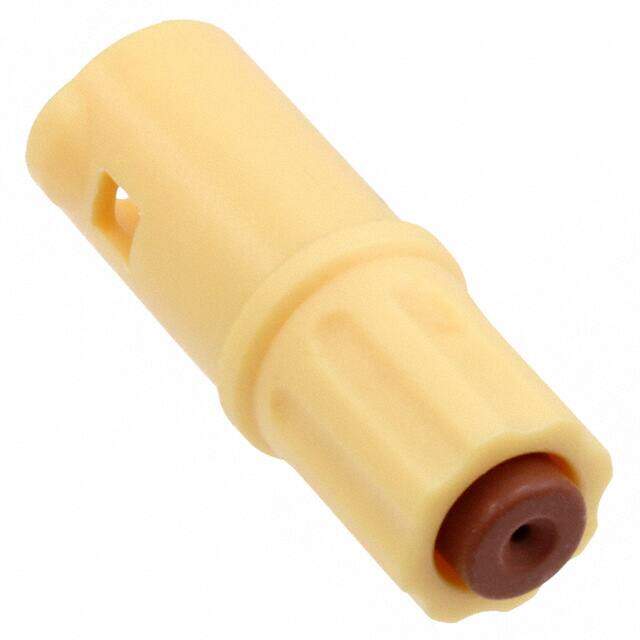

Lighting Connectors 1 POS SIZE 20 RECP. YELLOW
PDF
/
Inventory: 8293
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Ratings Environment Sealed
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
REACH SVHC No SVHC
Material Flammability Rating UL94 V-0
Dimensions
Length 26.162mm
Technical
Contact Size 20
Note Contacts Not Included
Housing Color Yellow
Number of Contacts 1
Shell Size - Insert 6
Current Rating 7.5A
Ingress Protection IP67 - Dust Tight, Waterproof
Shielding Unshielded
Contact Type Crimp
Fastening Type Detent Lock
Voltage - Rated 600V
Gender Receptacle
Color Yellow
Number of Positions 1
Type For Male Pins
Connector Type Receptacle Housing
Termination Quick Connect
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series Luminus
Published 2009
Packaging Bulk
Operating Temperature -55°C~95°C
Physical
Body Material Nylon, Polyamide
Shell Material Polyamide (PA66), Nylon 6/6
Contact Shape Circular
Mounting Type Free Hanging (In-Line)
Mount Free Hanging
Contact Material Stainless Steel, Steel
Supply Chain
Factory Lead Time 15 Weeks
