SJS716100
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Circular Connectors - Housings
Description

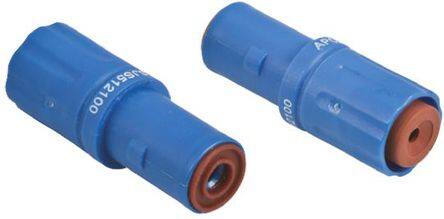

Lighting Connectors PLUG SZ 16; BLUE SINGLE SPLICE
PDF
/
Inventory: 8328
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 15 Weeks
Physical
Contact Material Stainless Steel, Steel
Mount Cable, Free Hanging
Mounting Type Free Hanging (In-Line)
Contact Shape Circular
Shell Material Polyamide (PA66), Nylon 6/6
Body Material Nylon, Polyamide
Technical
Operating Temperature -65°C~160°C
Packaging Bulk
Published 2007
Series Luminus
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Crimp
Connector Type Plug Housing
Type For Female Sockets
Number of Positions 1
Max Operating Temperature 160°C
Min Operating Temperature -65°C
Color Blue
Gender Male
Voltage - Rated 600V
Fastening Type Detent Lock
Contact Type Crimp
Orientation Straight
Shielding Unshielded
Ingress Protection IP67 - Dust Tight, Waterproof
Current Rating 13A
Shell Size - Insert 6
Number of Contacts 1
Contact Gender Female
Housing Color Blue
Note Contacts Not Included
Contact Size 16
Dimensions
Length 28.702mm
Compliance
Material Flammability Rating UL94 V-0
Radiation Hardening No
REACH SVHC No SVHC
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
Ratings Environment Sealed
