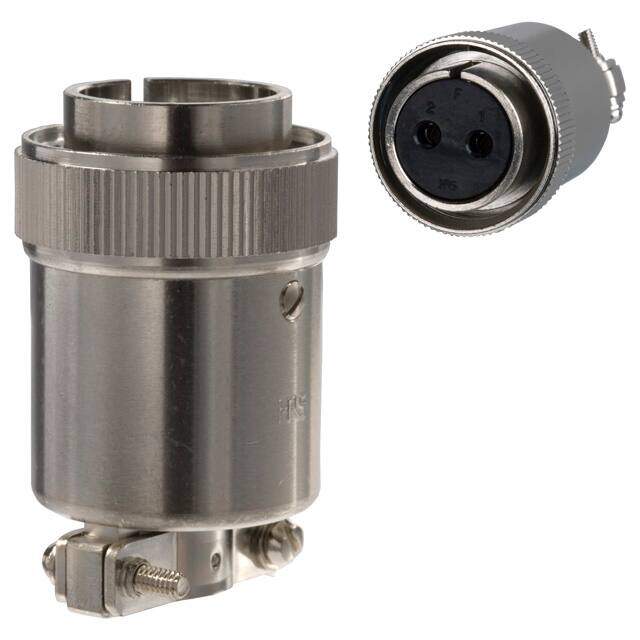

RM15TP-2SA
RoHS
/
Package /
Category Connectors, Interconnects / Circular Connectors
Description
CONN PLUG 2POS W/SOCKET INSERT
PDF
/
Inventory: 2375
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Technical
Filter Feature NO
Mixed Contacts NO
Option GENERAL PURPOSE
Current Rating (Amps) 10A
Total Number of Contacts 2
Orientation Keyed
Reach Compliance Code unknown
Current Rating 5A
Shell Finish NICKEL
Reference Standard UL
Shell Size - Insert 15
Reliability COMMERCIAL
Body Length or Diameter 0.846 inch
Mating Information MULTIPLE MATING PARTS AVAILABLE
Body Breadth 0.846 inch
Empty Shell NO
Backshell Type SOLID
Contact Style RND PIN-SKT
Insulation Resistance 1000000000Ohm
Dielectric Withstanding Voltage 1800VAC V
Number of Ports 1
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating NOT SPECIFIED
Subcategory DIN Connectors
Fastening Type Threaded
Voltage - Rated 600VAC 840VDC
Number of Positions 2
Connector Type Plug, Female Sockets
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Series RM
Published 2004
Packaging Bulk
Operating Temperature -25°C~85°C
Compliance
RoHS Status Non-RoHS Compliant
Lead Free Contains Lead
Physical
Shell Material BRASS/ZINC ALLOY
Insulation Material Plastic
Mounting Type Free Hanging (In-Line)
Mount Free Hanging
Contact Plating Silver
Contact Material NOT SPECIFIED
