21033814804
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Circular Connectors
Description

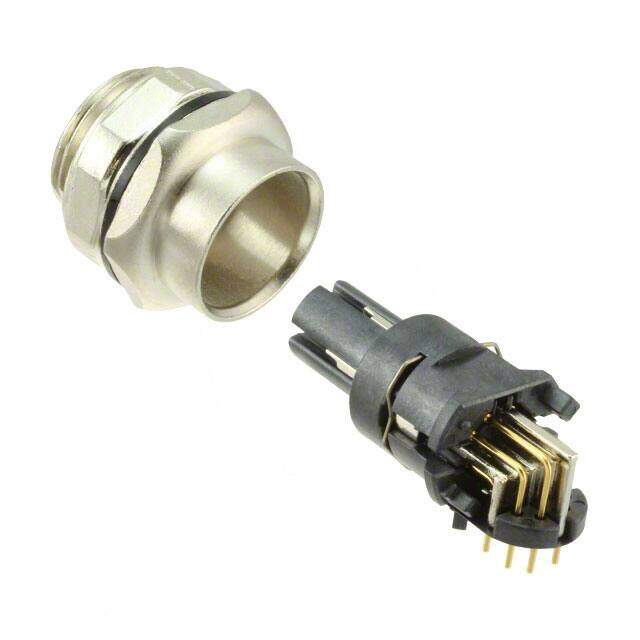

CONN RCPT FMALE 8POS SOLDER
PDF
/
Buying Options
Total Price: USD $40.74
Unit Price: USD $40.7352
≥1 USD $40.7352
≥10 USD $35.66992
≥100 USD $34.12845
≥500 USD $33.02743
≥1000 USD $31.92647
≥3000 USD $30.165027
Inventory: 475
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 16 Weeks
Physical
Contact Material Copper Alloy
Mount Bulkhead, Panel, Through Hole
Mounting Type Panel Mount, Through Hole, Right Angle
Mounting Feature Bulkhead
Shell Material Zinc Die Cast
Insert Material Liquid Crystal Polymer (LCP)
Technical
Operating Temperature -40°C~85°C
Packaging Bulk
Series Har-Speed M12
Feature Board Guide
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Receptacle, Female Sockets
Number of Positions 8
Color Silver
Voltage - Rated 50V
Fastening Type Threaded
Contact Finish - Mating Gold
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Mixed Contacts NO
Option GENERAL PURPOSE
Current Rating (Amps) 0.5A
Total Number of Contacts 8
Orientation X
Shielding Shielded
Ingress Protection IP67 - Dust Tight, Waterproof
Current Rating 500mA
Shell Size - Insert M12-8
Empty Shell NO
Backshell Type SOLID
Ambient Temperature Range High 85°C
Dimensions
Height 16.5mm
Compliance
RoHS Status ROHS3 Compliant
Ratings Dust Tight, IP65, Water Resistant, Waterproof
