21033814410
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Circular Connectors
Description

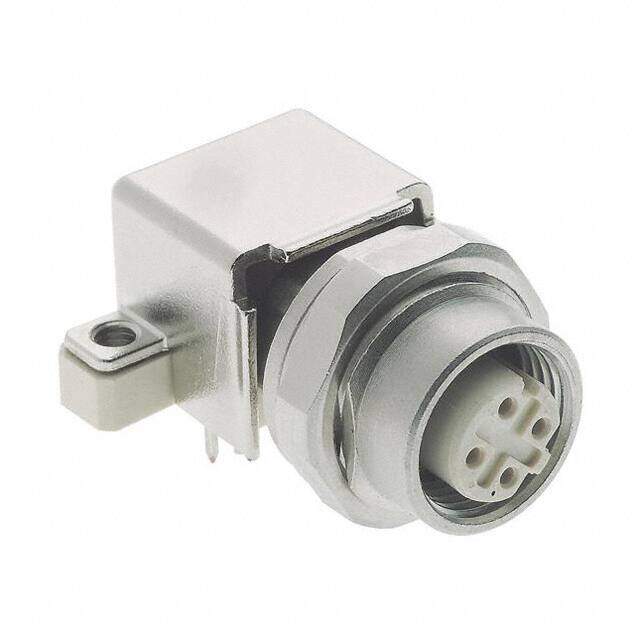

Circular Metric Connectors M12 PNL FEEDTHRU PCB ANG D-CODE
PDF
/
Buying Options
Total Price: USD $27.57
Unit Price: USD $27.5704
≥1 USD $27.5704
≥10 USD $24.14192
≥100 USD $23.09883
≥500 USD $22.35376
≥1000 USD $21.608664
Inventory: 366
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 17 Weeks
Physical
Contact Material Copper Alloy
Mount Bulkhead, Panel, Through Hole
Mounting Type Panel Mount, Through Hole, Right Angle
Mounting Feature Bulkhead
Shell Material Zinc Die Cast
Insert Material Liquid Crystal Polymer (LCP)
Technical
Operating Temperature -40°C~85°C
Packaging Tube
Series M12
JESD-609 Code e3
Feature Board Guide
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Receptacle, Female Sockets
Number of Positions 4
Color Silver
Gender Receptacle
Voltage - Rated 50V
Fastening Type Threaded
Contact Finish - Mating Gold
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Mixed Contacts NO
Option GENERAL PURPOSE
Total Number of Contacts 4
Orientation D
Shielding Shielded
Ingress Protection IP20
Depth 19mm
Current Rating 4A
Shell Size - Insert M12-4
Reliability COMMERCIAL
Contact Gender Female
Empty Shell NO
Rated Current (Signal) 4A
Body/Shell Style PLUG
Number of Ports 1
Ambient Temperature Range High 85°C
Dimensions
Height 14mm
Length 30.75mm
Compliance
RoHS Status ROHS3 Compliant
