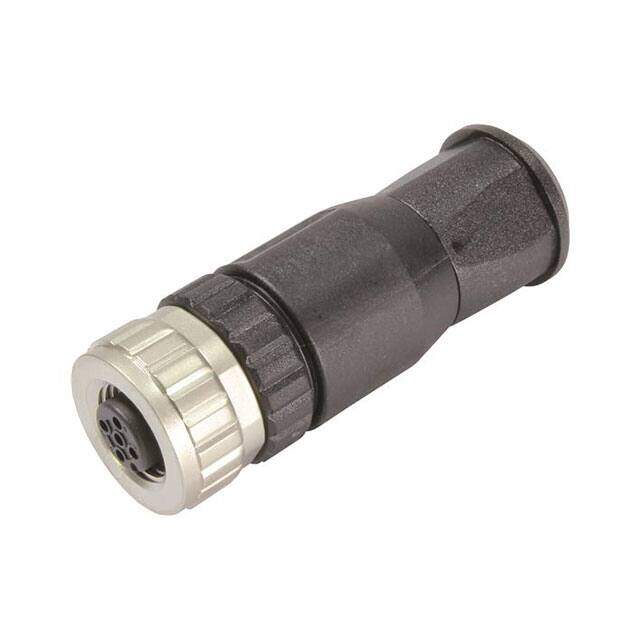

21033192501
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Circular Connectors
Description
CONN JACK FMALE 5POS GOLD SCREW
PDF
/
Buying Options
Total Price: USD $13.66
Unit Price: USD $13.659172
≥1 USD $13.659172
≥10 USD $12.886015
≥100 USD $12.156613
≥500 USD $11.468505
≥1000 USD $10.819342
Inventory: 3061
Minimum: 1
-
+
Technical Details
Compliance
Ratings Dust Tight, IP67, Waterproof
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Technical
Cable Opening 0.157 ~ 0.315 (4.00mm ~ 8.00mm)
Shell Size - Insert M12-5
Current Rating 7.5A
Ingress Protection IP65/67 - Dust Tight, Water Resistant, Waterproof
Shielding Unshielded
Orientation A
Contact Finish - Mating Gold
Fastening Type Threaded
Voltage - Rated 60V
Gender Receptacle
Color Black, Silver
Number of Positions 5
Connector Type Receptacle, Female Sockets
Termination Screw
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Backshell, Coupling Nut
Series M12
Packaging Bulk
Operating Temperature -30°C~85°C
Physical
Backshell Material, Plating Polyamide (PA), Nylon
Insert Material Polyamide (PA), Nylon
Shell Material Zinc Die Cast
Mounting Type Free Hanging (In-Line)
Mount Free Hanging
Contact Material Brass
Supply Chain
Factory Lead Time 4 Weeks
