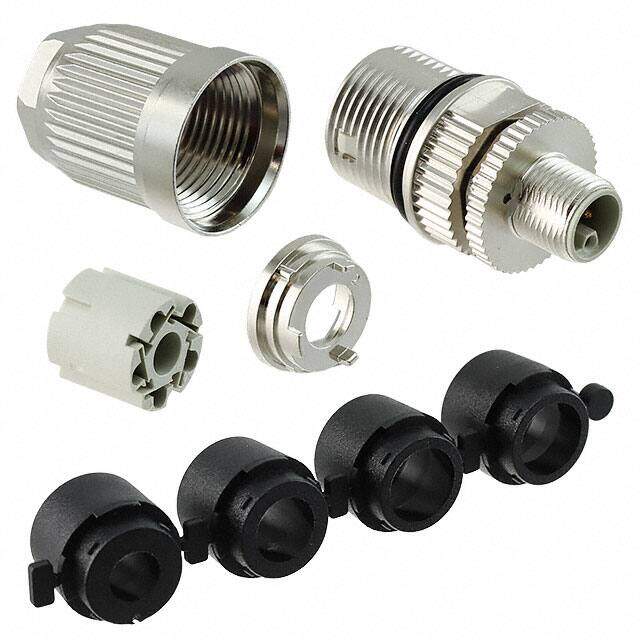

21032961505
RoHS
/
Package /
Category Connectors, Interconnects / Circular Connectors
Description
CONN PLUG MALE 5POS GOLD IDC
PDF
/
Buying Options
Total Price: USD $40.92
Unit Price: USD $40.92
≥1 USD $40.92
≥10 USD $35.8292
≥100 USD $34.28128
≥500 USD $33.175296
≥1000 USD $32.069488
≥3000 USD $30.300125
Inventory: 73
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Contact Material Copper Alloy
Mounting Type Free Hanging (In-Line)
Number of Pins 5
Shell Material Zinc Die Cast
Insert Material Polyamide (PA), Nylon
Backshell Material, Plating Zinc Die Cast
Technical
Operating Temperature -40°C~85°C
Packaging Bulk
Series M12 Power
Feature Backshell
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Termination IDC
Connector Type Plug, Male Pins
Number of Positions 5 (4 + FE)
Color Silver
Voltage - Rated 63V
Fastening Type Threaded
Contact Finish - Mating Gold
Orientation L
Shielding Shielded
Ingress Protection IP65/67 - Dust Tight, Water Resistant, Waterproof
Current Rating 12A
Shell Size - Insert M12-5
Cable Opening 0.228 ~ 0.531 (5.80mm ~ 13.50mm)
Compliance
RoHS Status RoHS Compliant
