21032722505
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Circular Connectors
Description

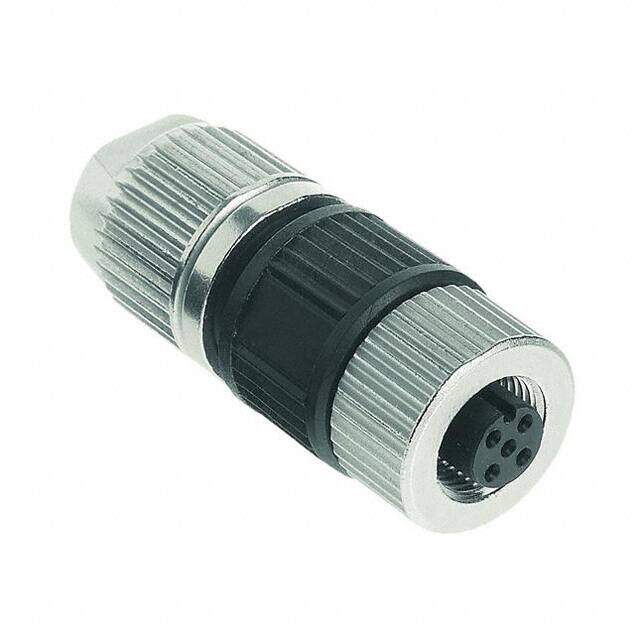

Circular Metric Connectors CIRCULAR CONNECTOR W. HARAX M12 L 5 F
PDF
/
Buying Options
Total Price: USD $31.25
Unit Price: USD $31.2488
≥1 USD $31.2488
≥10 USD $27.36624
≥100 USD $26.183872
≥500 USD $25.339072
≥1000 USD $24.494536
≥3000 USD $23.143085
Inventory: 44
Minimum: 1
-
+
Technical Details
Compliance
Ratings Dust Tight, IP65, Water Resistant, Waterproof
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Technical
Wire/Cable Diameter 9 mm
Cable Opening 0.236 ~ 0.315 (6.00mm ~ 8.00mm)
Backshell Type SOLID
Empty Shell NO
Contact Gender Female
Shell Size - Insert M12-5
Current Rating 4A
Ingress Protection IP65/67 - Dust Tight, Water Resistant, Waterproof
Shielding Unshielded
Orientation A
Total Number of Contacts 5
Mixed Contacts NO
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating Gold
Fastening Type Threaded
Voltage - Rated 50V
Gender Receptacle
Color Black, Silver
Number of Positions 5
Connector Type Receptacle, Female Sockets
Termination IDC
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Backshell, Coupling Nut
Series Harax? M12-L
Packaging Bulk
Operating Temperature -40°C~85°C
Physical
Backshell Material, Plating Zinc Die Cast
Insert Material Polyamide (PA), Nylon
Shell Material Zinc Die Cast
Mounting Type Free Hanging (In-Line)
Mount Cable, Free Hanging
Contact Material Brass
Supply Chain
Factory Lead Time 4 Weeks
