21032412300
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Circular Connectors
Description

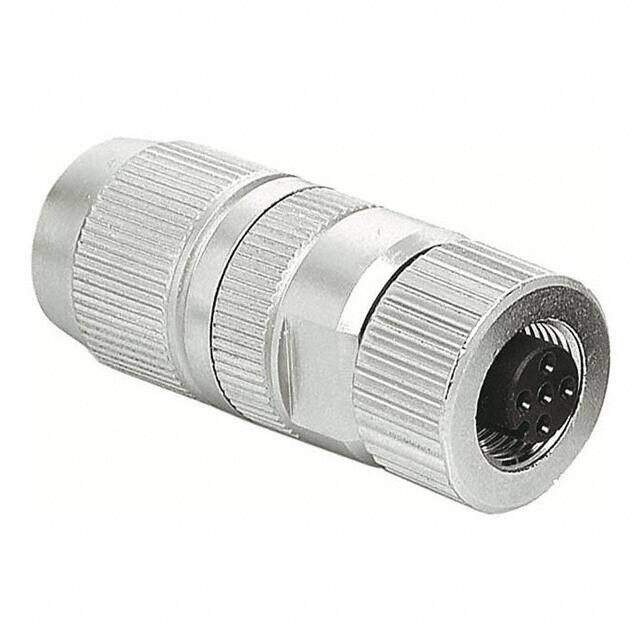

Circular Metric Connectors RSV HARAX M12/L3 FEM/PROFIBUS
PDF
/
Inventory: 9366
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Ratings Dust Tight, IP65, Water Resistant, Waterproof
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Technical
Wire/Cable Diameter 8.8 mm
Thread Size M12
Cable Opening 0.177 ~ 0.346 (4.50mm ~ 8.80mm)
Backshell Type SOLID
Empty Shell NO
Contact Gender Female
Shell Size - Insert M12-3
Current Rating 4A
Ingress Protection IP65/67 - Dust Tight, Water Resistant, Waterproof
Shielding Shielded
Orientation B
Total Number of Contacts 3
Option GENERAL PURPOSE
Mixed Contacts NO
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating Gold
Fastening Type Threaded
Voltage - Rated 32V
Gender Male
Color Silver
Number of Positions 3
Connector Type Receptacle, Female Sockets
Termination IDC
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Backshell, Coupling Nut
Series Harax? M12-L
Packaging Bulk
Operating Temperature -40°C~85°C
Physical
Backshell Material, Plating Zinc Die Cast
Insert Material Polyamide (PA), Nylon
Shell Material Zinc Die Cast
Mounting Type Free Hanging (In-Line)
Mount Cable, Free Hanging
Contact Material Brass
Supply Chain
Factory Lead Time 20 Weeks
