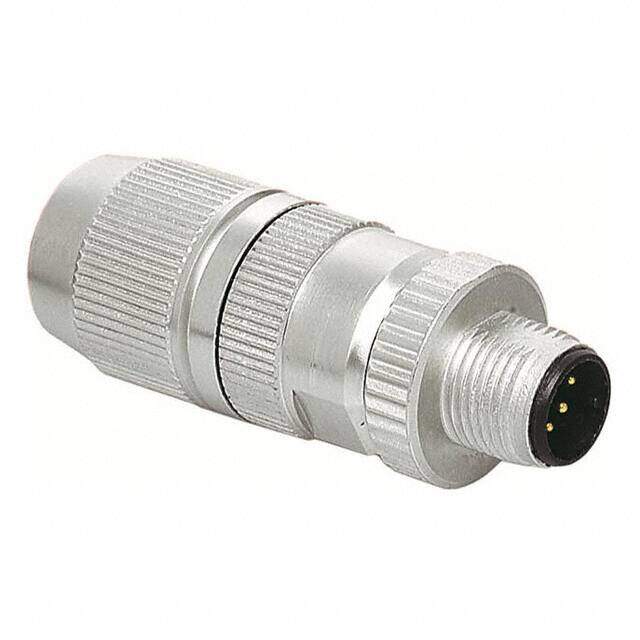

21032411300

HARTING
RoHS
/
Package /
Category Connectors, Interconnects / Circular Connectors
Description Circular Metric Connectors CIRC CONNECTOR HARAX M12 L3 ML
PDF
/
Inventory: 9906
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Physical

Contact Material Brass
Mount Cable, Free Hanging
Mounting Type Free Hanging (In-Line)
Shell Material Zinc Die Cast
Insert Material Polyamide (PA), Nylon
Backshell Material, Plating Zinc Die Cast

Technical

Operating Temperature -40°C~85°C
Packaging Bulk
Series Harax? M12-L
Feature Backshell
Pbfree Code yes
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination IDC
Connector Type Plug, Male Pins
Number of Positions 3
Color Silver
Voltage - Rated 32V
Fastening Type Threaded
Contact Finish - Mating Gold
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Mixed Contacts NO
Option GENERAL PURPOSE
Total Number of Contacts 3
Orientation B
Shielding Shielded
Ingress Protection IP65/67 - Dust Tight, Water Resistant, Waterproof
Current Rating 4A
Shell Size - Insert M12-3
Contact Gender Male
Empty Shell NO
Working Voltage 50V
Backshell Type SOLID
Wire/Cable Gauge 22 AWG
Cable Opening 0.177 ~ 0.346 (4.50mm ~ 8.80mm)
Thread Size M12
Wire/Cable Diameter 8.8 mm

Compliance

REACH SVHC No SVHC
RoHS Status RoHS Compliant
Ratings Dust Tight, IP65, Water Resistant, Waterproof
