21032121305
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Circular Connectors
Description

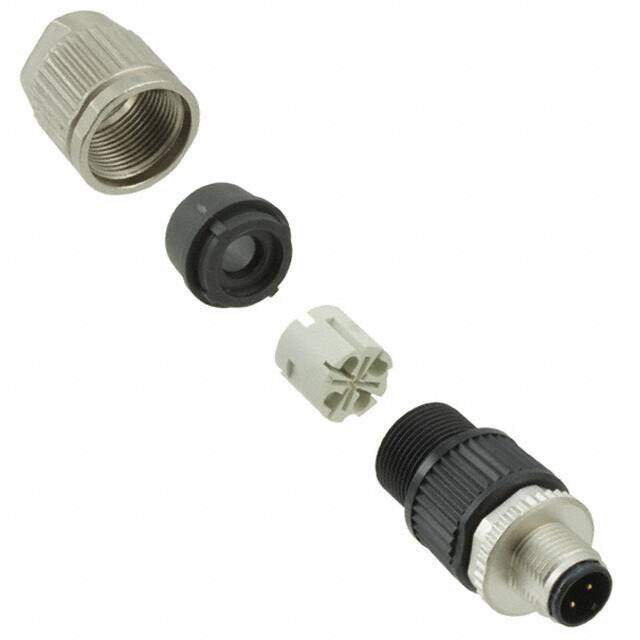

Sensor Connector, Harax Series, M12, Plug, 4 Contacts, IDC / IDT Pin, Straight Cable Mount
PDF
/
Buying Options
Total Price: USD $22.31
Unit Price: USD $22.308
≥1 USD $22.308
≥10 USD $19.53336
≥100 USD $18.689088
≥500 USD $18.086112
≥1000 USD $17.483312
≥3000 USD $16.518726
Inventory: 76
Minimum: 1
-
+
Technical Details
Compliance
Ratings Dust Tight, IP65, Water Resistant, Waterproof
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Technical
Cable Opening 0.236 ~ 0.315 (6.00mm ~ 8.00mm)
Backshell Type SOLID
Empty Shell NO
Contact Gender Male
Shell Size - Insert M12-4
Current Rating 6A
Ingress Protection IP65/67 - Dust Tight, Water Resistant, Waterproof
Shielding Unshielded
Orientation A
Total Number of Contacts 4
Mixed Contacts NO
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating Gold
Voltage - Rated DC 50V
Fastening Type Threaded
Voltage - Rated 50V
Color Black, Silver
Number of Positions 4
Connector Type Plug, Male Pins
Termination IDC
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Backshell
Series Harax? M12-L
Packaging Bulk
Operating Temperature -40°C~85°C
Physical
Backshell Material, Plating Zinc Die Cast
Insert Material Polyamide (PA), Nylon
Shell Material Zinc Die Cast
Insulation Material PVC
Mounting Type Free Hanging (In-Line)
Mount Cable, Free Hanging
Contact Material Brass
Supply Chain
Factory Lead Time 8 Weeks
