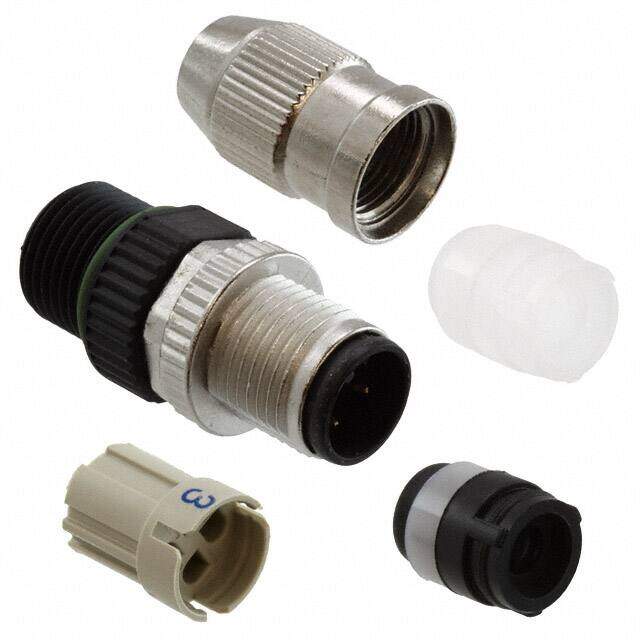

21031111305
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Circular Connectors
Description
CONN PLUG 3POS INLINE PIN
PDF
/
Buying Options
Total Price: USD $19.39
Unit Price: USD $19.3864
≥1 USD $19.3864
≥10 USD $16.97608
≥100 USD $16.242336
≥500 USD $15.718384
≥1000 USD $15.19452
≥3000 USD $14.356179
Inventory: 109
Minimum: 1
-
+
Technical Details
Compliance
Ratings Dust Tight, IP65, Water Resistant, Waterproof
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Technical
Wire/Cable Diameter 5.1 mm
Cable Opening 0.114 ~ 0.201 (2.90mm ~ 5.10mm)
Contact Gender Male
Shell Size - Insert M12-3
Ingress Protection IP65/67 - Dust Tight, Water Resistant, Waterproof
Orientation A
Current Rating (Amps) 4A
Contact Finish - Mating Gold
Fastening Type Threaded
Voltage - Rated 32V
Color Black, Silver
Number of Positions 3
Connector Type Plug, Male Pins
Termination IDC
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Backshell
Series Harax? M12-S
Packaging Bulk
Operating Temperature -40°C~85°C
Physical
Backshell Material, Plating Zinc Die Cast
Insert Material Polyamide (PA), Nylon
Shell Material Zinc Die Cast
Mounting Type Free Hanging (In-Line)
Mount Cable, Free Hanging
Contact Material Brass
Supply Chain
Factory Lead Time 4 Weeks
