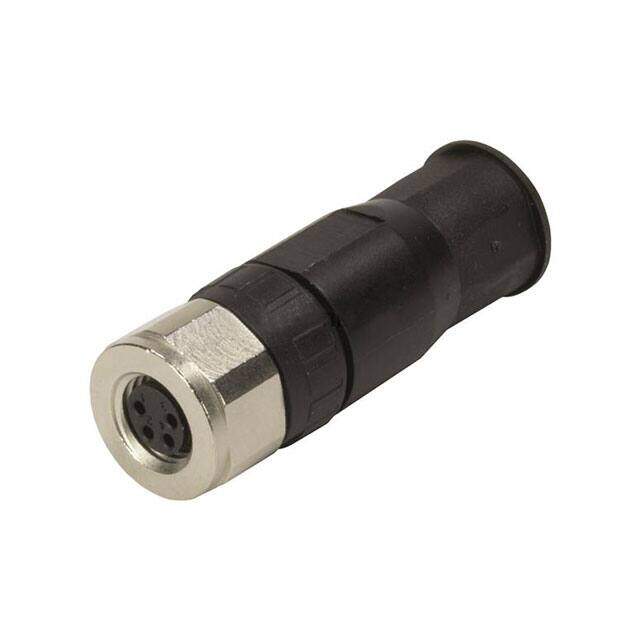

21023592401
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Circular Connectors
Description
CONN JACK FMALE 4POS GOLD SCREW
PDF
/
Buying Options
Total Price: USD $18.19
Unit Price: USD $18.1896
≥1 USD $18.1896
≥10 USD $15.92448
≥100 USD $15.236672
≥500 USD $14.74528
≥1000 USD $14.253712
≥3000 USD $13.467274
Inventory: 47
Minimum: 1
-
+
Technical Details
Compliance
Ratings Dust Tight, IP67, Waterproof
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Technical
Shell Size - Insert M8-4
Current Rating 4A
Ingress Protection IP67 - Dust Tight, Waterproof
Orientation A
Contact Finish - Mating Gold
Fastening Type Threaded
Voltage - Rated 30V
Gender Receptacle
Color Black, Silver
Number of Positions 4
Connector Type Receptacle, Female Sockets
Termination Screw
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Backshell, Coupling Nut
Series M8
Packaging Bulk
Operating Temperature -30°C~85°C
Physical
Backshell Material, Plating Polyamide (PA), Nylon
Insert Material Polyamide (PA), Nylon
Shell Material Copper Zinc Alloy
Mounting Type Free Hanging (In-Line)
Mount Free Hanging
Contact Material Brass
Supply Chain
Factory Lead Time 4 Weeks
