21021512405
RoHS
RoHS compliant
RoHS compliantPackage Metal
Category Connectors, Interconnects / Circular Connectors
Description

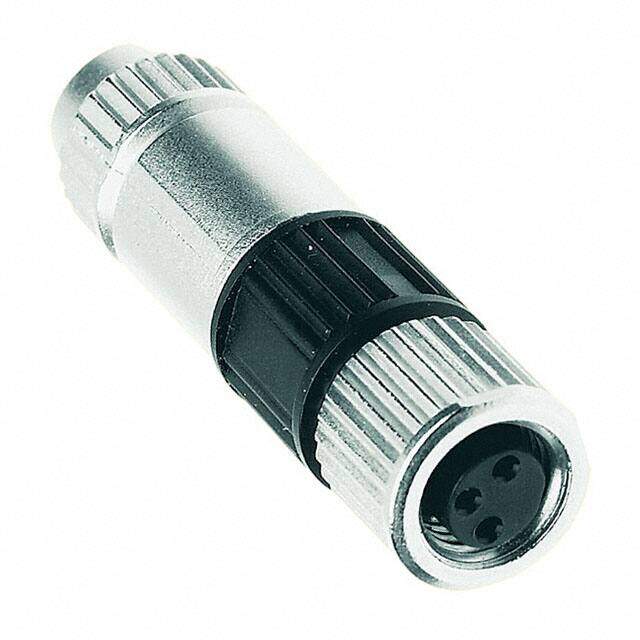

HARTING 21 02 151 2405 Sensor Connector, 4 Position M8 Sensors & Actuators
PDF
/
Buying Options
Total Price: USD $14.42
Unit Price: USD $14.4232
≥1 USD $14.4232
≥10 USD $12.78024
≥100 USD $12.288672
≥500 USD $11.79728
≥1000 USD $11.141856
≥3000 USD $10.15872
Inventory: 34
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Contact Material Copper Alloy
Mount Cable, Free Hanging
Mounting Type Free Hanging (In-Line)
Package / Case Metal
Shell Material Zinc Die Cast
Insert Material Polyamide (PA), Nylon
Backshell Material, Plating Zinc Die Cast
Technical
Operating Temperature -40°C~85°C
Packaging Bulk
Series Harax? M8-S
Feature Backshell, Coupling Nut
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination IDC
Connector Type Receptacle, Female Sockets
Number of Positions 4
Color Black, Silver
Voltage - Rated 32V
Fastening Type Threaded
Contact Finish - Mating Gold
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Mixed Contacts NO
Total Number of Contacts 4
Orientation A
Shielding Unshielded
Ingress Protection IP67 - Dust Tight, Waterproof
Current Rating 4A
Shell Size - Insert M8-4
Contact Gender Female
Empty Shell NO
Backshell Type SOLID
Thread Size M8
Dimensions
Diameter 11.8mm
Length 42.5mm
Compliance
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Ratings Dust Tight, IP65, IP67, Waterproof
