21021511405
RoHS
RoHS compliant
RoHS compliantPackage Metal
Category Connectors, Interconnects / Circular Connectors
Description

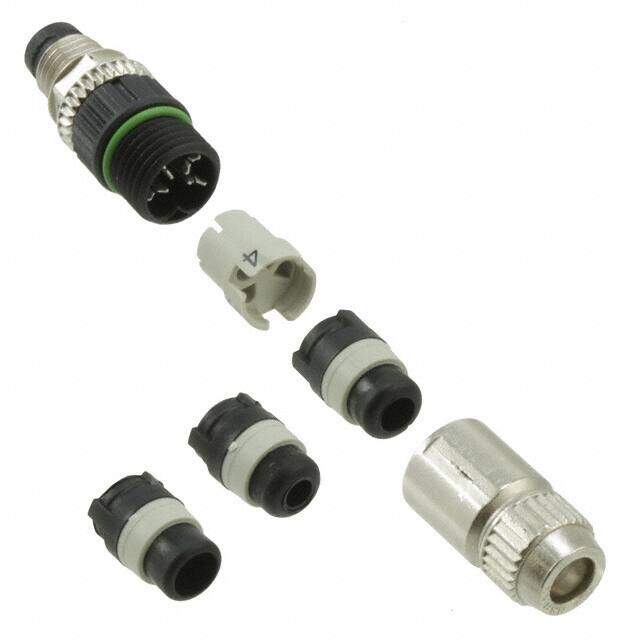

HARTING 21 02 151 1405 Sensor Connector, 4 Position M8 Sensors & Actuators
PDF
/
Buying Options
Total Price: USD $11.88
Unit Price: USD $11.88
≥1 USD $11.88
≥10 USD $10.52656
≥100 USD $10.12176
≥500 USD $9.71696
≥1000 USD $9.17708
≥3000 USD $8.367357
Inventory: 40
Minimum: 1
-
+
Technical Details
Compliance
Ratings Dust Tight, IP65, IP67, Waterproof
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Technical
Wire/Cable Diameter 5.1 mm
Thread Size M8
Backshell Type SOLID
Empty Shell NO
Contact Gender Male
Shell Size - Insert M8-4
Current Rating 4A
Ingress Protection IP67 - Dust Tight, Waterproof
Shielding Unshielded
Orientation A
Total Number of Contacts 4
Mixed Contacts NO
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating Gold
Voltage - Rated DC 32V
Fastening Type Threaded
Voltage - Rated 32V
Color Black, Silver
Number of Positions 4
Connector Type Plug, Male Pins
Termination IDC
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Backshell
Series Harax? M8-S
Packaging Bulk
Operating Temperature -40°C~85°C
Physical
Backshell Material, Plating Zinc Die Cast
Insert Material Polyamide (PA), Nylon
Shell Material Zinc Die Cast
Package / Case Metal
Mounting Type Free Hanging (In-Line)
Mount Cable, Free Hanging
Contact Material Copper Alloy
Supply Chain
Factory Lead Time 4 Weeks
