21011405081
RoHS
RoHS compliant
RoHS compliantPackage Metal
Category Connectors, Interconnects / Circular Connectors
Description

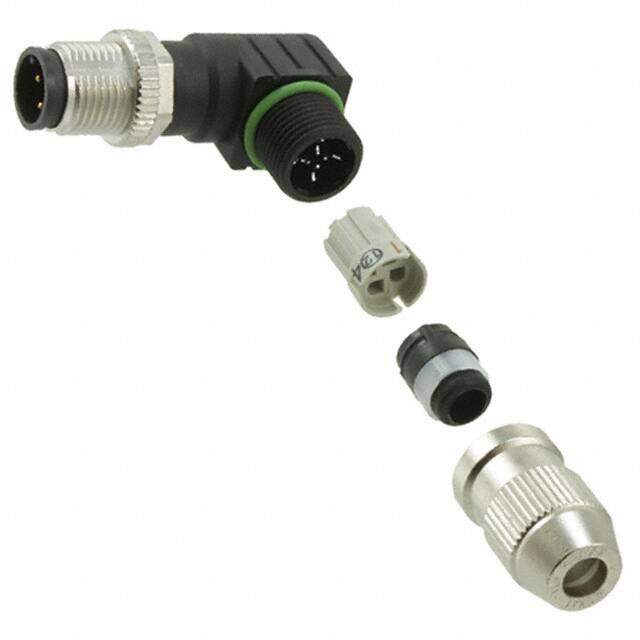

Circular Metric Connectors 4P Male M12 A-Code R/A Harax
PDF
/
Buying Options
Total Price: USD $24.35
Unit Price: USD $24.3496
≥1 USD $24.3496
≥10 USD $21.32416
≥100 USD $20.402976
≥500 USD $19.744736
≥1000 USD $19.086496
≥3000 USD $18.033488
Inventory: 105
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Contact Material Brass
Mount Cable, Free Hanging
Mounting Type Free Hanging (In-Line), Right Angle
Package / Case Metal
Shell Material Zinc Die Cast
Insert Material Polyamide (PA), Nylon
Technical
Operating Temperature -40°C~85°C
Packaging Bulk
Series Harax? M12
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination IDC
Connector Type Plug, Male Pins
Number of Positions 4
Color Black, Silver
Fastening Type Threaded
Voltage - Rated DC 32V
Contact Finish - Mating Gold
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Mixed Contacts NO
Total Number of Contacts 4
Orientation A
Shielding Unshielded
Ingress Protection IP67 - Dust Tight, Waterproof
Current Rating 4A
Shell Size - Insert M12-4
Contact Gender Male
Empty Shell NO
Working Voltage 32V
Backshell Type SOLID
Wire/Cable Gauge 20 AWG
Thread Size M12
Wire/Cable Diameter 5.1 mm
Compliance
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Ratings Dust Tight, IP65, IP67, Waterproof
