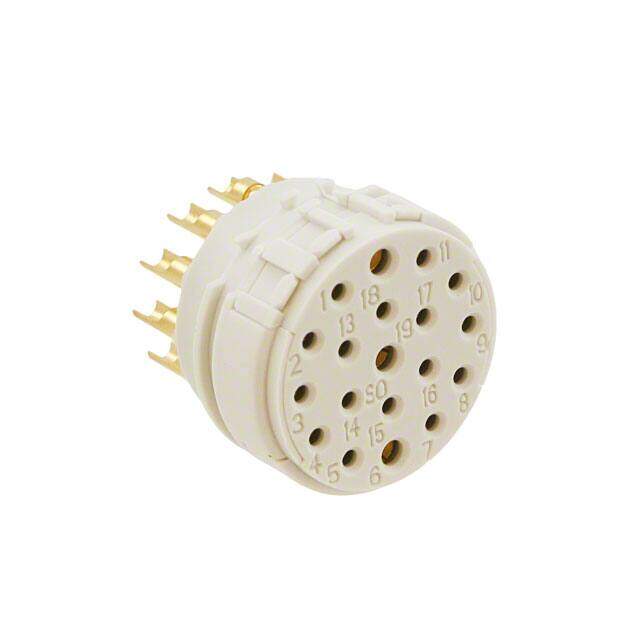

09152192703
RoHS
/
Package /
Category Connectors, Interconnects / Circular Connectors
Description
CONN FMALE INSERT 19POS SLDR CUP
PDF
/
Inventory: 3677
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Contact Material Copper Alloy
Mounting Type BOARD
Shell Material Metal
Insert Material Polybutylene Terephthalate (PBT)
Technical
Operating Temperature -40°C~115°C
Packaging Bulk
Series Han? R23
JESD-609 Code e4
Feature Insert Only, Requires Shell
Pbfree Code yes
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder Cup
Connector Type Insert, Female Sockets
Number of Positions 19
Voltage - Rated 50V
Contact Finish - Mating Gold
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Mixed Contacts YES
Option GENERAL PURPOSE
Current Rating (Amps) 7A 10A
Total Number of Contacts 19
Orientation Straight
Shielding Unshielded
Current Rating 10A
Shell Finish NICKEL
Mating Information MULTIPLE MATING PARTS AVAILABLE
Contact Gender Female
Empty Shell NO
Backshell Type SOLID
Environmental Characteristics CORROSION RESISTANT
Shell Size 23
Coupling Type BAYONET
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
