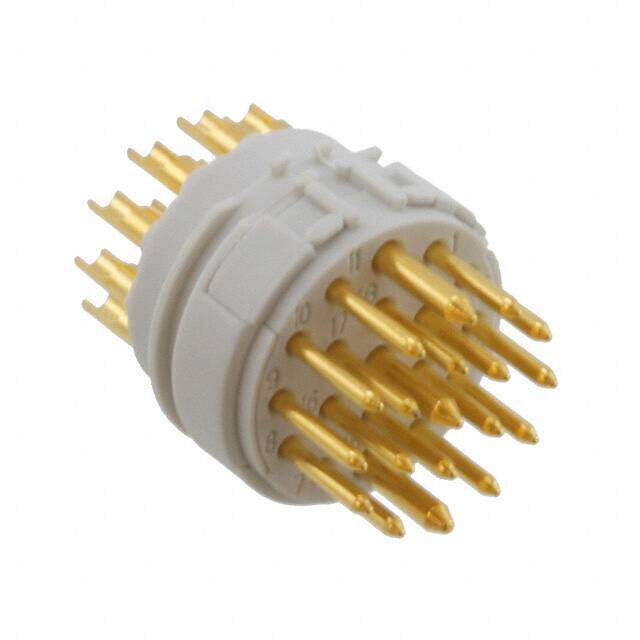

09152192603 image
Favorite
09152192603 image
Favorite

09152192603

HARTING
RoHS
/
Package Metal
Category Connectors, Interconnects / Circular Connectors
Description NICKEL Han? R23 RoHS Compliant Straight Circular Connector -40C~115C 10A 50V
PDF
/
Inventory: 7864
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0

Technical

Coupling Type BAYONET
Shell Size 23
Environmental Characteristics CORROSION RESISTANT
Backshell Type SOLID
Empty Shell NO
Mating Information MULTIPLE MATING PARTS AVAILABLE
Shell Finish NICKEL
Current Rating 10A
Shielding Unshielded
Orientation Straight
Total Number of Contacts 19
Current Rating (Amps) 7A 10A
Option GENERAL PURPOSE
Mixed Contacts YES
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating Gold
Voltage - Rated 50V
Number of Positions 19
Connector Type Insert, Male Pins
Termination Solder Cup
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Pbfree Code yes
Feature Insert Only, Requires Shell
JESD-609 Code e4
Series Han? R23
Packaging Bulk
Operating Temperature -40°C~115°C

Physical

Insert Material Polybutylene Terephthalate (PBT)
Shell Material COPPER-ZINC ALLOY
Package / Case Metal
Mounting Type BOARD
Contact Material Copper Alloy
