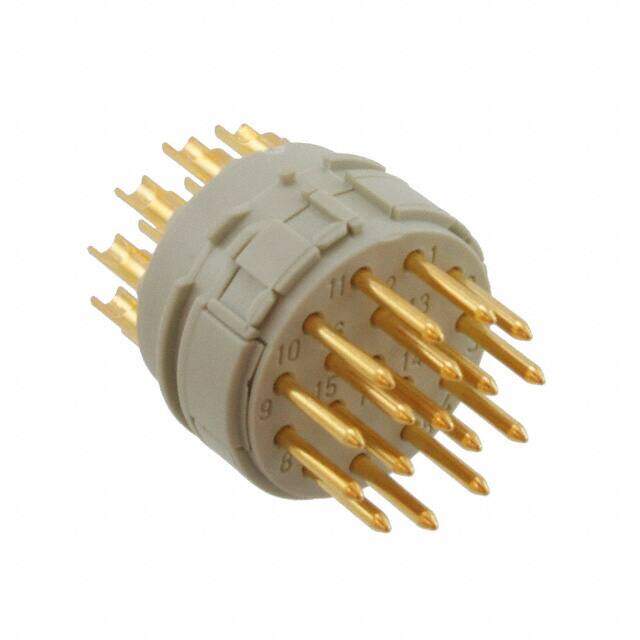

09152172603 image
Favorite
09152172603 image
Favorite

09152172603

HARTING
RoHS
/
Package Metal
Category Connectors, Interconnects / Circular Connectors
Description CONN MALE INSERT 17POS SLDR CUP
PDF
/
Inventory: 7038
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0

Technical

Coupling Type BAYONET
Max Current Rating 7A
Shell Size 23
Environmental Characteristics CORROSION RESISTANT
Backshell Type SOLID
Empty Shell NO
Contact Gender Male
Mating Information MULTIPLE MATING PARTS AVAILABLE
Shell Finish NICKEL
Current Rating 7A
Shielding Unshielded
Orientation Straight
Total Number of Contacts 17
Option GENERAL PURPOSE
Mixed Contacts YES
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating Gold
Gender Female
Number of Positions 17
Connector Type Insert, Male Pins
Termination Solder Cup
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Pbfree Code yes
Feature Insert Only, Requires Shell
JESD-609 Code e4
Series Han? R23
Packaging Bulk
Operating Temperature -40°C~115°C

Physical

Insert Material Polybutylene Terephthalate (PBT)
Housing Material Polycarbonate
Shell Material COPPER-ZINC ALLOY
Package / Case Metal
Mount Through Hole
Contact Material Copper Alloy
