09152092703
RoHS
/
Package Metal
Category Connectors, Interconnects / Circular Connectors
Description

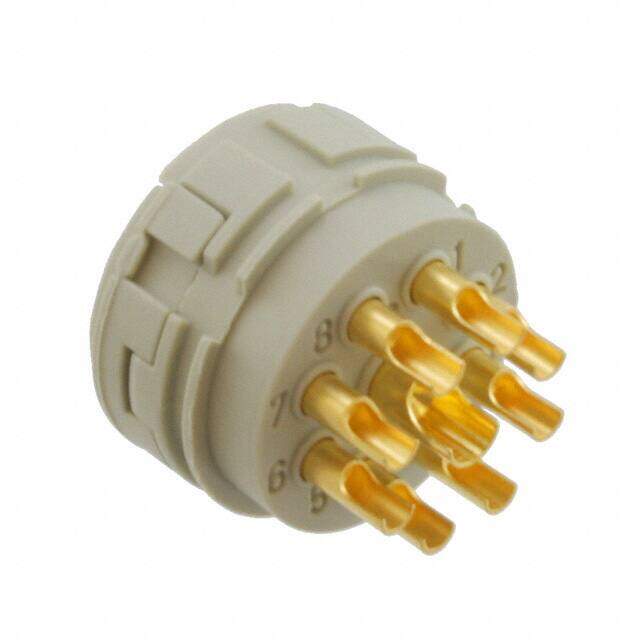

Heavy Duty Power Connectors FEMALE INSERT METAL SOLDER TERM
PDF
/
Inventory: 6399
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Technical
Coupling Type BAYONET
Shell Size 23
Environmental Characteristics CORROSION RESISTANT
Backshell Type SOLID
Empty Shell NO
Contact Gender Male
Mating Information MULTIPLE MATING PARTS AVAILABLE
Shell Finish NICKEL
Current Rating 15A
Shielding Unshielded
Orientation Straight
Total Number of Contacts 9
Current Rating (Amps) 7A 15A
Option GENERAL PURPOSE
Mixed Contacts YES
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating Gold
Number of Positions 9
Connector Type Insert, Female Sockets
Termination Solder Cup
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Pbfree Code yes
Feature Insert Only, Requires Shell
JESD-609 Code e4
Series Han? R23
Packaging Bulk
Operating Temperature -40°C~115°C
Physical
Insert Material Polybutylene Terephthalate (PBT)
Housing Material PC
Shell Material COPPER-ZINC ALLOY
Package / Case Metal
Mounting Type BOARD
Contact Material Copper Alloy
