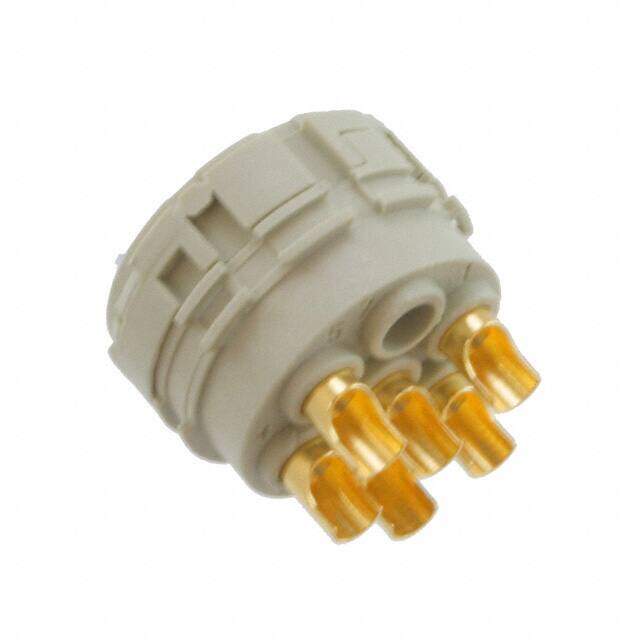

09152062703
RoHS
/
Package /
Category Connectors, Interconnects / Circular Connectors
Description
CONN FMALE INSERT 6POS SLDR CUP
PDF
/
Inventory: 3255
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Technical
Coupling Type BAYONET
Shell Size 23
Environmental Characteristics CORROSION RESISTANT
Backshell Type SOLID
Empty Shell NO
Mating Information MULTIPLE MATING PARTS AVAILABLE
Shell Finish NICKEL
Current Rating 15A
Shielding Unshielded
Total Number of Contacts 6
Option GENERAL PURPOSE
Mixed Contacts YES
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating Gold
Voltage - Rated DC 50V
Voltage - Rated 50V
Gender Female
Number of Positions 6 (Power)
Connector Type Insert, Female Sockets
Termination Solder Cup
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Pbfree Code yes
Feature Insert Only, Requires Shell
JESD-609 Code e4
Series Han? R23
Packaging Bulk
Operating Temperature -40°C~115°C
Physical
Insert Material Polybutylene Terephthalate (PBT)
Shell Material COPPER-ZINC ALLOY
Mounting Type BOARD
Contact Material Copper Alloy
