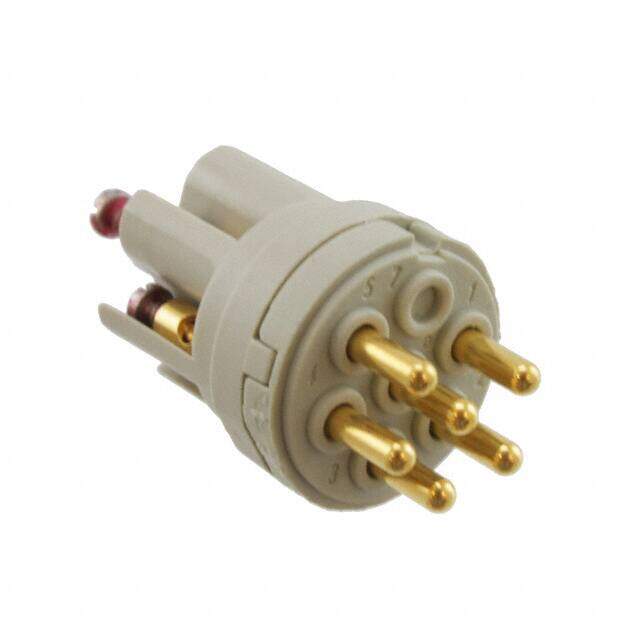

09152062601 image
Favorite
09152062601 image
Favorite

09152062601

HARTING
RoHS
/
Package /
Category Connectors, Interconnects / Circular Connectors
Description CONN MALE INSERT 6POS GOLD SCREW
PDF
/
Inventory: 6270
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0

Technical

Coupling Type BAYONET
Shell Size 23
Environmental Characteristics CORROSION RESISTANT
Backshell Type SOLID
Empty Shell NO
Mating Information MULTIPLE MATING PARTS AVAILABLE
Shell Finish NICKEL
Current Rating 15A
Shielding Unshielded
Total Number of Contacts 6
Option GENERAL PURPOSE
Mixed Contacts YES
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating Gold
HTS Code 8536.69.40.20
Number of Positions 6 (Power)
Connector Type Insert, Male Pins
ECCN Code EAR99
Termination Screw
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Pbfree Code yes
Feature Insert Only, Requires Shell
JESD-609 Code e4
Series Han? R23
Packaging Bulk
Operating Temperature -40°C~115°C

Physical

Insert Material Polybutylene Terephthalate (PBT)
Shell Material COPPER-ZINC ALLOY
Mounting Type BOARD
Contact Material Copper Alloy
