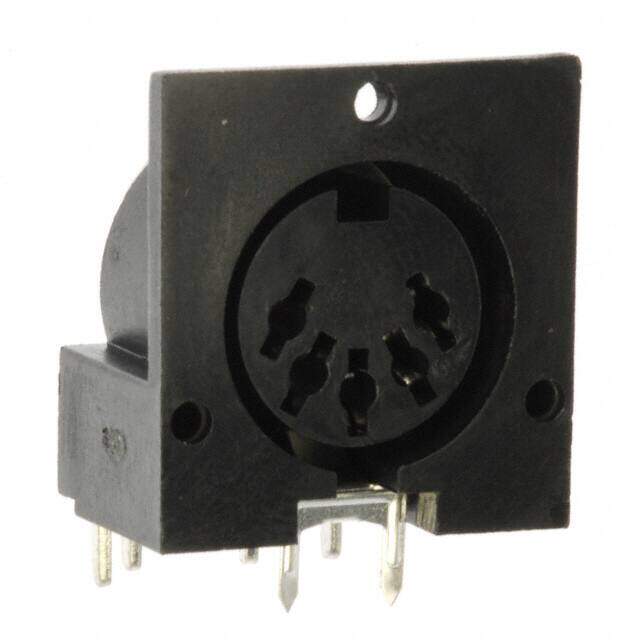

SDS-50J
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Circular Connectors
Description
CONN RCPT FMALE DIN 5POS SOLDER
PDF
/
Buying Options
Total Price: USD $2.33
Unit Price: USD $2.332
≥1 USD $2.332
≥10 USD $2.11816
≥100 USD $2.0064
≥500 USD $1.95976
≥1000 USD $1.86648
≥3000 USD $1.633174
Inventory: 1385
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Dimensions
Width 20mm
Height 21.1mm
Technical
Housing Color Black
Number of Contacts 5
Lead Pitch 1.3mm
Shell Size - Insert DIN 180 Degree
Current Rating 2A
Shielding Unshielded
Orientation Keyed
Current Rating (Amps) 2A
Contact Finish - Mating Tin
Voltage - Rated DC 24V
Fastening Type Push-Pull
Voltage - Rated 100VAC
Gender Female
Number of Rows 2
Color Black
Min Operating Temperature -40°C
Max Operating Temperature 85°C
Number of Positions 5
Connector Type Receptacle, Female Sockets
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Ground
Series SDS-J
Published 2011
Packaging Tray
Operating Temperature -40°C~85°C
Physical
Shell Material Polybutylene Terephthalate (PBT)
Insulation Material Plastic
Number of Pins 7
Mounting Type Through Hole, Right Angle
Mount Through Hole
Contact Plating Tin
Contact Material Brass
Supply Chain
Factory Lead Time 15 Weeks
