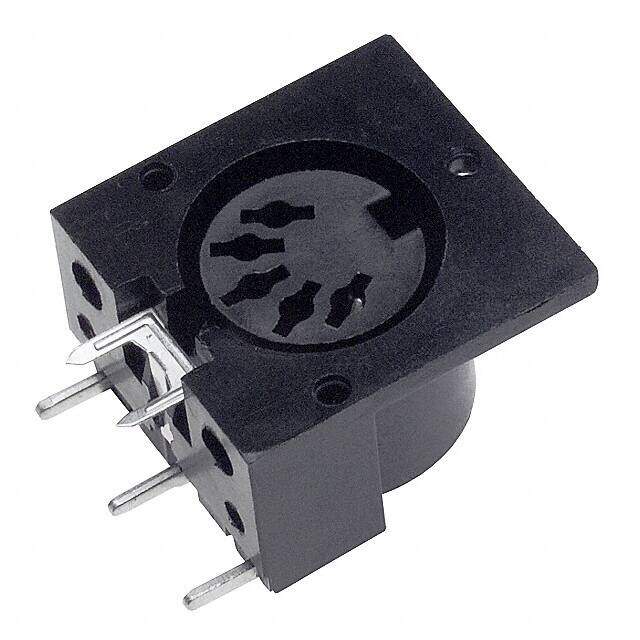

SDS-30J
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Circular Connectors
Description
CONN RCPT FMALE DIN 3POS SOLDER
PDF
/
Inventory: 8795
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Lead Free
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Technical
Number of Contacts 3
Shell Size - Insert DIN 180 Degree
Current Rating 1A
Shielding Unshielded
Orientation Keyed
Current Rating (Amps) 2A
Contact Finish - Mating Tin
Fastening Type Push-Pull
Voltage - Rated 100VAC
Color Black
Min Operating Temperature -40°C
Max Operating Temperature 85°C
Number of Positions 3
Connector Type Receptacle, Female Sockets
Termination Solder
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Obsolete
Feature Ground
Series SDS-J
Published 2011
Packaging Tray
Operating Temperature -40°C~85°C
Physical
Shell Material Polybutylene Terephthalate (PBT)
Insulation Material Plastic
Mounting Type Through Hole, Right Angle
Mount Through Hole
Contact Plating Tin
Contact Material Brass
Supply Chain
Factory Lead Time 7 Weeks
