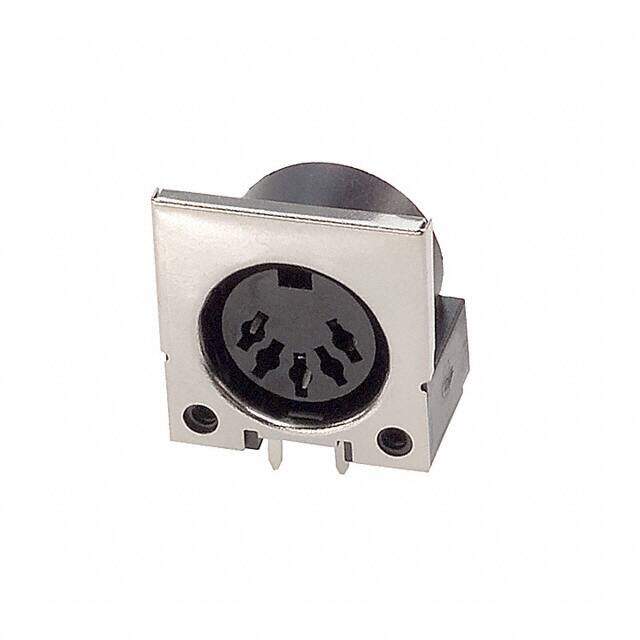

SDF-30J
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Circular Connectors
Description
SDF-J RoHS Compliant 2011 Keyed Circular Connector 85C 1A 100VAC
PDF
/
Inventory: 4240
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 9 Weeks
Physical
Contact Material Brass
Contact Plating Nickel
Mount Through Hole
Mounting Type Through Hole, Right Angle
Insulation Material Plastic
Shell Material Polybutylene Terephthalate (PBT)
Technical
Operating Temperature -40°C~85°C
Packaging Tray
Published 2011
Series SDF-J
Feature Ground
Part Status Obsolete
Moisture Sensitivity Level (MSL) Not Applicable
Termination Solder
Connector Type Receptacle, Female Sockets
Number of Positions 3
Max Operating Temperature 85°C
Min Operating Temperature -40°C
Color Black, Silver
Voltage - Rated 100VAC
Fastening Type Push-Pull
Contact Finish - Mating Tin
Current Rating (Amps) 2A
Orientation Keyed
Shielding Shielded
Current Rating 1A
Shell Size - Insert DIN 180 Degree
Number of Contacts 3
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Lead Free Lead Free
