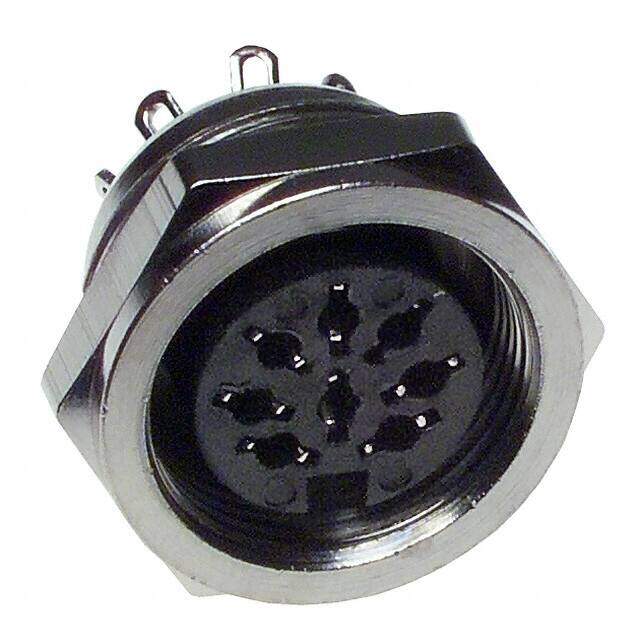

SD-80LS
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Circular Connectors
Description
CONN RCPT FMALE DIN 8POS SOLDER
PDF
/
Buying Options
Total Price: USD $5.21
Unit Price: USD $5.2096
≥1 USD $5.2096
≥10 USD $4.73088
≥100 USD $4.48096
≥500 USD $4.376944
≥1000 USD $4.168472
≥3000 USD $3.647424
Inventory: 41281
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status RoHS Compliant
Material Flammability Rating UL94 HB
Technical
Number of Contacts 8
Shell Size - Insert DIN 270 Degree
Shell Finish Nickel
Current Rating 2A
Shielding Shielded
Orientation Keyed
Current Rating (Amps) 2A
Contact Finish - Mating Tin
Fastening Type Threaded
Voltage - Rated 100VAC
Color Silver
Min Operating Temperature -40°C
Max Operating Temperature 85°C
Number of Positions 8
Connector Type Receptacle, Female Sockets
Termination Solder Eyelet(s)
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series SD-LS
Published 2003
Packaging Bulk
Operating Temperature -40°C~85°C
Physical
Insert Material Polyamide (PA), Nylon
Shell Material Zinc
Insulation Material Nylon
Mounting Feature Bulkhead - Rear Side Nut
Mounting Type Panel Mount
Mount Bulkhead, Panel, Rear Side Nut
Contact Plating Silver
Contact Material Brass
Supply Chain
Factory Lead Time 10 Weeks
