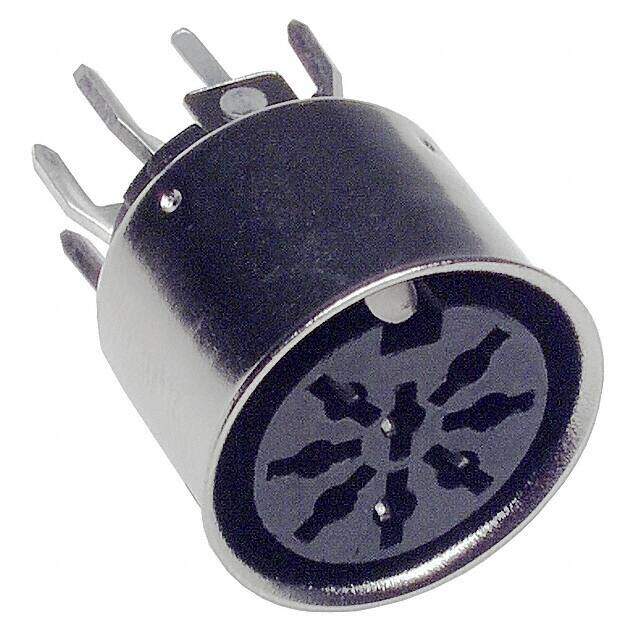

SD-80BV
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Circular Connectors
Description
CONN RCPT FMALE DIN 8POS SOLDER
PDF
/
Buying Options
Total Price: USD $2.02
Unit Price: USD $2.0152
≥1 USD $2.0152
≥10 USD $1.75032
≥100 USD $1.675872
≥500 USD $1.63856
≥1000 USD $1.564112
≥3000 USD $1.415146
Inventory: 4168
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Technical
Number of Contacts 8
Shell Size - Insert DIN 270 Degree
Shell Finish Nickel
Current Rating 1A
Shielding Shielded
Orientation Keyed
Current Rating (Amps) 1A
Contact Finish - Mating Tin
Fastening Type Push-Pull
Voltage - Rated 24VDC
Color Silver
Min Operating Temperature -20°C
Max Operating Temperature 60°C
Number of Positions 8
Connector Type Receptacle, Female Sockets
Termination Solder
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Series SD-BV
Published 2011
Packaging Bulk
Operating Temperature -20°C~60°C
Physical
Shell Material Iron Sheet
Insulation Material Plastic
Mounting Type Through Hole
Mount Through Hole
Contact Plating Silver
Contact Material Brass
Supply Chain
Factory Lead Time 11 Weeks
