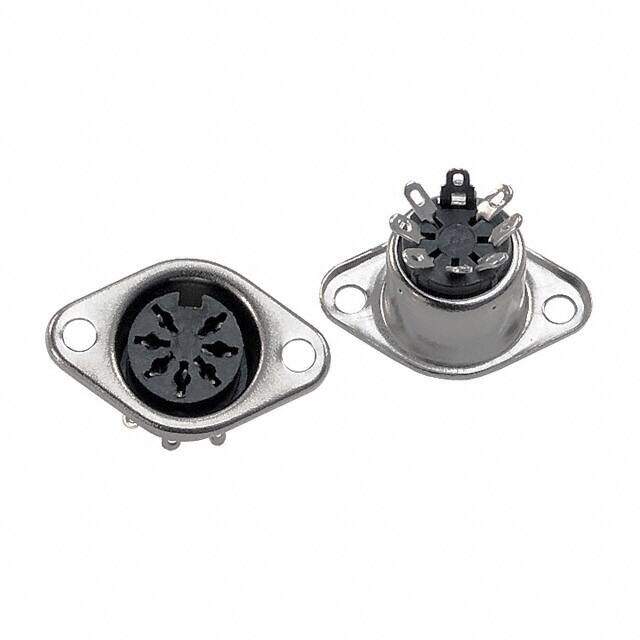

SD-70SN
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Circular Connectors
Description
CONN RCPT FMALE DIN 7POS SOLDER
PDF
/
Buying Options
Total Price: USD $2.21
Unit Price: USD $2.2088
≥1 USD $2.2088
≥10 USD $2.00552
≥100 USD $1.899392
≥500 USD $1.85526
≥1000 USD $1.766952
≥3000 USD $1.5554
Inventory: 429
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Technical
Number of Contacts 7
Shell Size - Insert DIN 270 Degree
Shell Finish Nickel
Current Rating 2A
Shielding Shielded
Orientation Keyed
Current Rating (Amps) 1A 2A
Contact Finish - Mating Silver
Fastening Type Push-Pull
Voltage - Rated 100VAC 12VDC
Color Silver
Number of Positions 7
Connector Type Receptacle, Female Sockets
Termination Solder Eyelet(s)
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Series SD-SN
Published 2011
Packaging Bulk
Operating Temperature 5°C~70°C
Physical
Insert Material Polybutylene Terephthalate (PBT)
Shell Material Steel
Insulation Material Plastic
Mounting Feature Flange
Mounting Type Panel Mount
Mount Flanges, Panel
Contact Plating Silver
Contact Material Brass
Supply Chain
Factory Lead Time 11 Weeks
