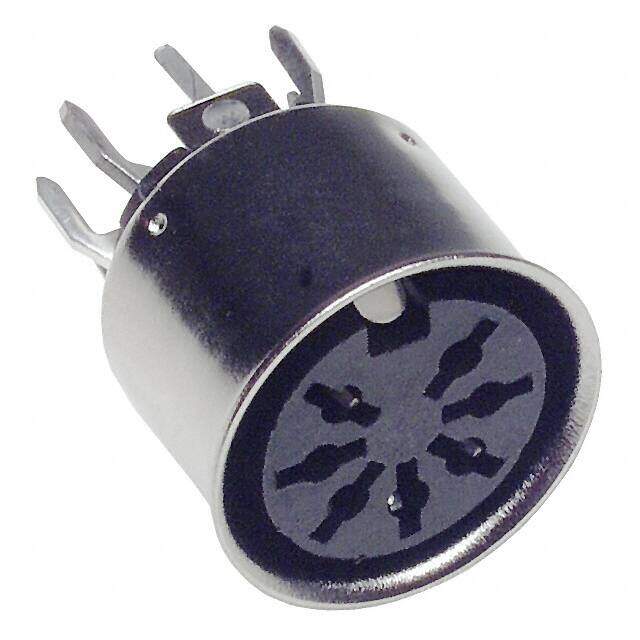

SD-70BV
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Circular Connectors
Description
CONN RCPT FMALE DIN 7POS SOLDER
PDF
/
Buying Options
Total Price: USD $1.92
Unit Price: USD $1.9184
≥1 USD $1.9184
≥10 USD $1.67112
≥100 USD $1.59984
≥500 USD $1.564288
≥1000 USD $1.493184
≥3000 USD $1.350976
Inventory: 2036
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 11 Weeks
Physical
Contact Material Brass
Contact Plating Silver
Mount Through Hole
Mounting Type Through Hole
Insulation Material Plastic
Shell Material Iron Sheet
Technical
Operating Temperature -20°C~60°C
Packaging Bulk
Published 2011
Series SD-BV
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Termination Solder
Connector Type Receptacle, Female Sockets
Number of Positions 7
Max Operating Temperature 60°C
Min Operating Temperature -20°C
Color Silver
Voltage - Rated 24VDC
Fastening Type Push-Pull
Contact Finish - Mating Tin
Current Rating (Amps) 1A
Orientation Keyed
Shielding Shielded
Current Rating 1A
Shell Finish Nickel
Shell Size - Insert DIN 270 Degree
Number of Contacts 7
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Lead Free Lead Free
