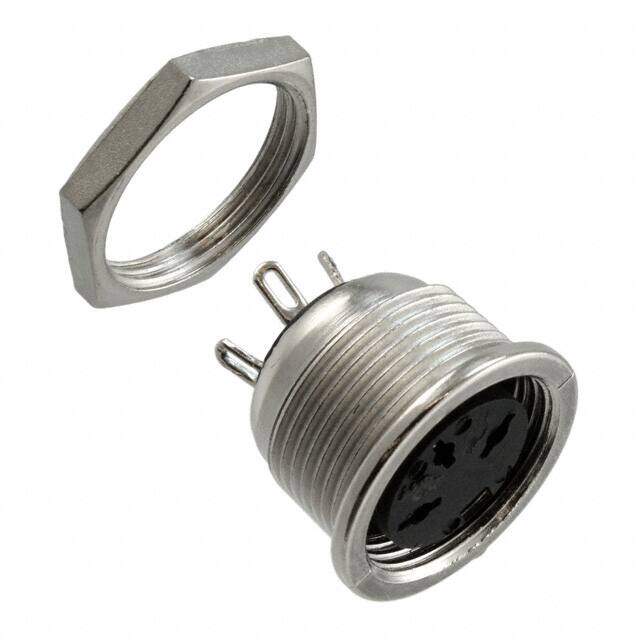

SD-30LS
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Circular Connectors
Description
CONN DIN RECPT LOCKING PNL MT 3P
PDF
/
Buying Options
Total Price: USD $3.42
Unit Price: USD $3.4232
≥1 USD $3.4232
≥10 USD $3.10904
≥100 USD $2.944832
≥500 USD $2.876192
≥1000 USD $2.739264
≥3000 USD $2.396874
Inventory: 761
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 10 Weeks
Physical
Contact Material Brass
Contact Plating Silver
Mount Bulkhead, Panel, Rear Side Nut
Mounting Type Panel Mount
Mounting Feature Bulkhead - Rear Side Nut
Insulation Material Nylon
Shell Material Zinc
Insert Material Polyamide (PA), Nylon
Technical
Operating Temperature -40°C~85°C
Packaging Bulk
Published 2011
Series SD-LS
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Termination Solder Eyelet(s)
Connector Type Receptacle, Female Sockets
Number of Positions 3
Max Operating Temperature 85°C
Min Operating Temperature -40°C
Color Silver
Voltage - Rated 100VAC
Fastening Type Threaded
Contact Finish - Mating Tin
Current Rating (Amps) 2A
Orientation Keyed
Shielding Shielded
Current Rating 2A
Shell Finish Nickel
Shell Size - Insert DIN 180 Degree
Number of Contacts 3
Compliance
Material Flammability Rating UL94 HB
RoHS Status RoHS Compliant
Lead Free Lead Free
