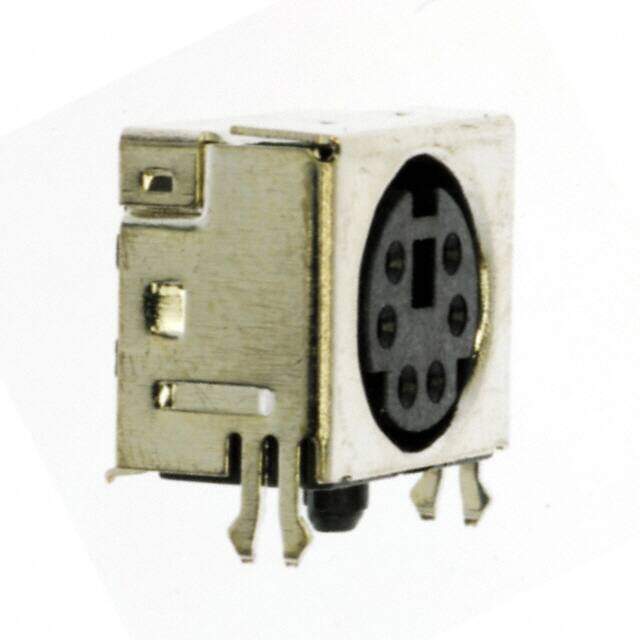

MD2-60ST-SMT image
Favorite
MD2-60ST-SMT image
Favorite

MD2-60ST-SMT

CUI Devices
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Circular Connectors
Description Mini DIN Receptacle, Slim Type, Right-Angle, surface Mount, Full Shield 6P
PDF
/
Inventory: 4240
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Supply Chain

Factory Lead Time 9 Weeks

Physical

Contact Material Phosphor Bronze
Mount Surface Mount
Mounting Type Surface Mount, Right Angle
Insulation Material Plastic
Shell Material Liquid Crystal Polymer (LCP)

Technical

Operating Temperature -25°C~85°C
Packaging Tube
Published 2011
Series MD2-ST-SMT
Feature Board Lock, Ground
Pbfree Code yes
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Receptacle, Female Sockets
Number of Positions 6
Voltage - Rated 100VAC 12VDC
Fastening Type Push-Pull
Subcategory DIN Connectors
Contact Finish - Mating Silver
DIN Conformance YES
Current Rating (Amps) 1A 2A
Total Number of Contacts 6
Orientation Keyed
Shielding Shielded
Current Rating 2A
Reference Standard UL
Shell Size - Insert Mini DIN
Reliability COMMERCIAL
Body Breadth 0.433 inch
Body Depth 0.307 inch
Contact Style RND PIN-SKT
Contact Resistance 30mOhm
Insulation Resistance 50000000Ohm
Polarization Key POLAR PIN POSITION
Dielectric Withstanding Voltage 250VAC V
Number of Ports 1
Durability 1000 Cycles

Compliance

Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Lead Free Lead Free
