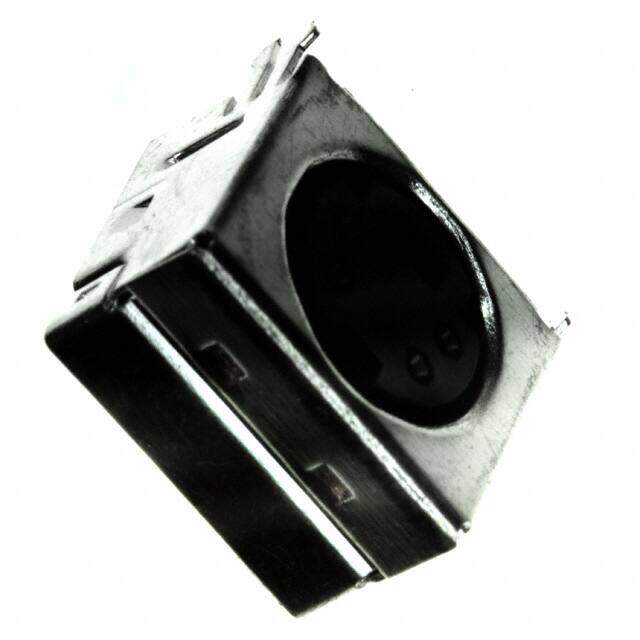

MD2-40ST-SMT
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Circular Connectors
Description
CONN RCPT FMALE MINI DIN 4P SLDR
PDF
/
Buying Options
Total Price: USD $2.33
Unit Price: USD $2.332
≥1 USD $2.332
≥10 USD $2.11816
≥100 USD $2.0064
≥500 USD $1.95976
≥1000 USD $1.86648
≥3000 USD $1.633174
Inventory: 1039
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Technical
Durability 1000 Cycles
Number of Ports 1
Dielectric Withstanding Voltage 250VAC V
Polarization Key POLAR PIN POSITION
Insulation Resistance 50000000Ohm
Contact Resistance 30mOhm
Contact Style RND PIN-SKT
Body Depth 0.307 inch
Body Length or Diameter 0.516 inch
Reliability COMMERCIAL
Shell Size - Insert Mini DIN
Current Rating 2A
Shielding Shielded
Orientation Keyed
Total Number of Contacts 4
Current Rating (Amps) 1A 2A
DIN Conformance YES
Contact Finish - Mating Silver
Subcategory DIN Connectors
Fastening Type Push-Pull
Voltage - Rated 100VAC 12VDC
Number of Positions 4
Connector Type Receptacle, Female Sockets
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Pbfree Code yes
Feature Board Lock, Ground
Series MD2-ST-SMT
Published 2011
Packaging Cut Tape (CT)
Operating Temperature -25°C~85°C
Physical
Shell Material Liquid Crystal Polymer (LCP)
Insulation Material Plastic
Mounting Type Surface Mount, Right Angle
Mount Surface Mount
Contact Material Phosphor Bronze
Supply Chain
Factory Lead Time 7 Weeks
