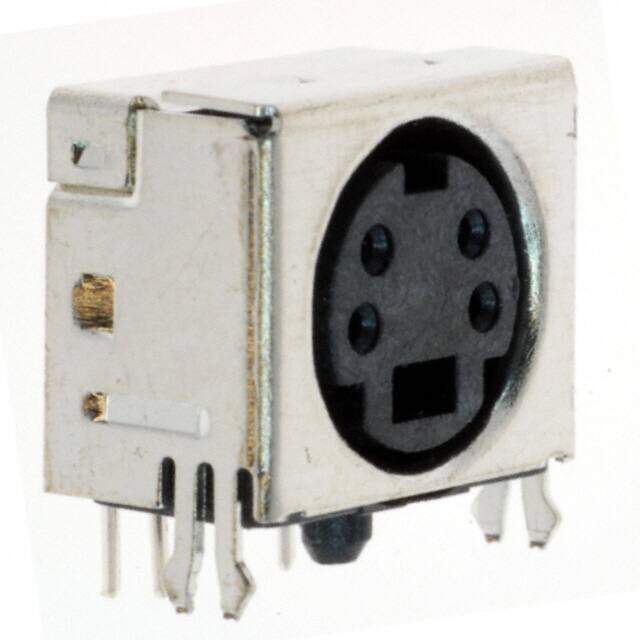

MD2-40ST
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Circular Connectors
Description
CONN RCPT FMALE MINI DIN 4P SLDR
PDF
/
Inventory: 5707
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 9 Weeks
Physical
Contact Material Phosphor Bronze
Mount Through Hole
Mounting Type Through Hole, Right Angle
Insulation Material Plastic
Shell Material Liquid Crystal Polymer (LCP)
Technical
Operating Temperature -25°C~85°C
Packaging Tube
Published 2011
Series MD2-ST
Feature Board Lock, Ground
Pbfree Code yes
Part Status Obsolete
Moisture Sensitivity Level (MSL) Not Applicable
Termination Solder
Connector Type Receptacle, Female Sockets
Number of Positions 4
Voltage - Rated 100VAC 12VDC
Fastening Type Push-Pull
Subcategory DIN Connectors
Contact Finish - Mating Silver
DIN Conformance YES
Current Rating (Amps) 1A 2A
Total Number of Contacts 4
Orientation Keyed
Shielding Shielded
Current Rating 2A
Reference Standard UL
Shell Size - Insert Mini DIN
Reliability COMMERCIAL
Body Length or Diameter 0.516 inch
Body Depth 0.307 inch
Contact Style RND PIN-SKT
Contact Resistance 30mOhm
Insulation Resistance 50000000Ohm
Polarization Key POLAR PIN POSITION
Dielectric Withstanding Voltage 250VAC V
Number of Ports 1
Durability 5000 Cycles
Withdrawl Force-Min 7.5616 N
Dimensions
Length - Termination 0.118 inch
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Lead Free Lead Free
