MD-80
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Circular Connectors
Description

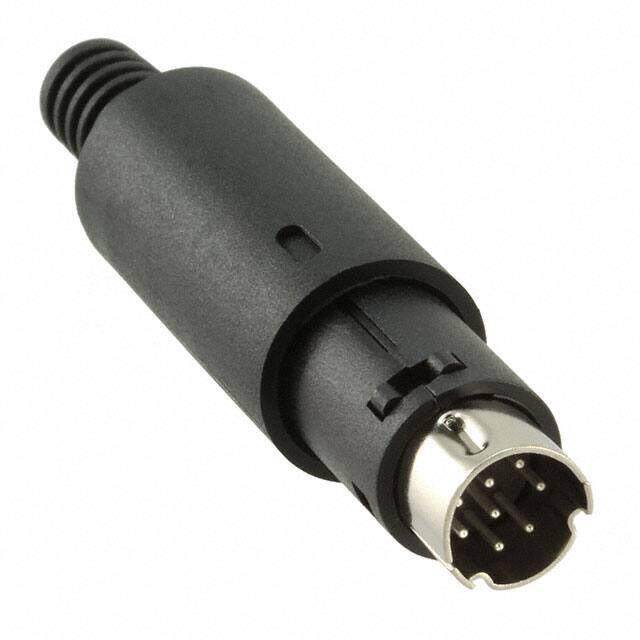

CONN PLUG MALE MINI DIN 8P SLDR
PDF
/
Buying Options
Total Price: USD $2.45
Unit Price: USD $2.4464
≥1 USD $2.4464
≥10 USD $2.22112
≥100 USD $2.103904
≥500 USD $2.054976
≥1000 USD $1.95712
≥3000 USD $1.712506
Inventory: 4019
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status RoHS Compliant
Technical
Number of Contacts 8
Shell Size - Insert Mini DIN
Current Rating 2A
Shielding Unshielded
Orientation Keyed
Current Rating (Amps) 1A 2A
Contact Finish - Mating Silver
Fastening Type Push-Pull
Voltage - Rated 100VAC 12VDC
Color Black
Min Operating Temperature -20°C
Max Operating Temperature 105°C
Number of Positions 8
Connector Type Plug, Male Pins
Termination Solder, Crimp Pin Adapter Available
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Backshell, Strain Relief
Series MD
Packaging Bulk
Operating Temperature -20°C~105°C
Physical
Insert Material Polyamide (PA6), Nylon 6
Shell Material Polyacrylonitrile Butadiene Styrene (ABS)
Insulation Material Nylon
Number of Pins 8
Mounting Type Free Hanging (In-Line)
Mount Free Hanging
Contact Plating Silver
Contact Material Brass
Supply Chain
Factory Lead Time 11 Weeks
