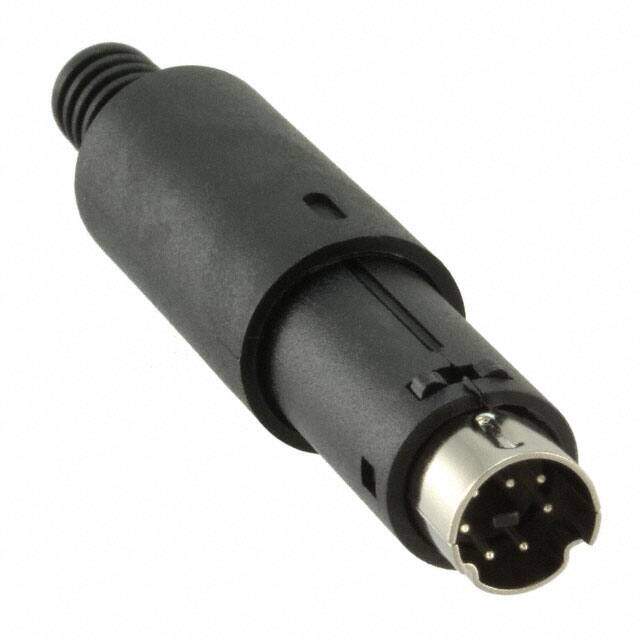

MD-70
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Circular Connectors
Description
CONN PLUG MALE MINI DIN 7P SLDR
PDF
/
Buying Options
Total Price: USD $3.52
Unit Price: USD $3.518572
≥1 USD $3.518572
≥200 USD $1.404803
≥500 USD $1.357539
≥1000 USD $1.333906
Inventory: 3960
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 11 Weeks
Physical
Contact Material Brass
Contact Plating Silver
Mount Free Hanging
Mounting Type Free Hanging (In-Line)
Insulation Material Nylon
Shell Material Polyacrylonitrile Butadiene Styrene (ABS)
Insert Material Polyamide (PA6), Nylon 6
Technical
Operating Temperature -20°C~105°C
Packaging Bulk
Published 2011
Series MD
Feature Backshell, Strain Relief
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder, Crimp Pin Adapter Available
Connector Type Plug, Male Pins
Number of Positions 7
Max Operating Temperature 105°C
Min Operating Temperature -20°C
Color Black
Voltage - Rated 100VAC 12VDC
Fastening Type Push-Pull
Contact Finish - Mating Silver
Current Rating (Amps) 1A 2A
Orientation Keyed
Shielding Unshielded
Current Rating 2A
Shell Size - Insert Mini DIN
Number of Contacts 7
Compliance
RoHS Status RoHS Compliant
Lead Free Lead Free
