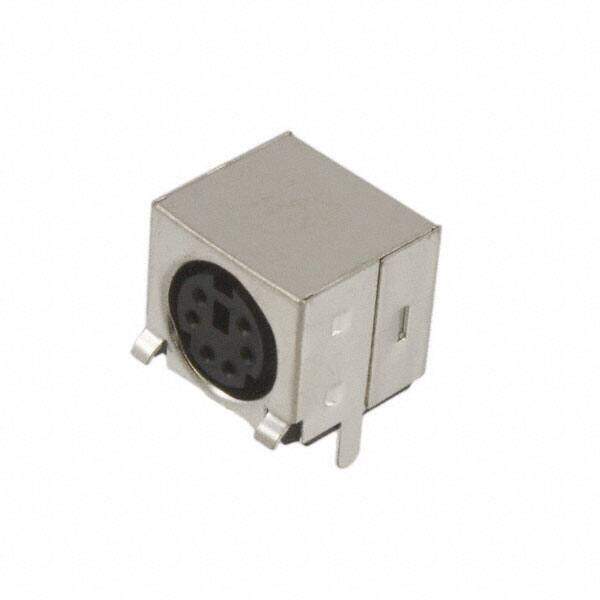

MD-60SG
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Circular Connectors
Description
CONN RCPT FMALE MINI DIN 6P SLDR
PDF
/
Inventory: 8596
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 7 Weeks
Physical
Contact Material Phosphor Bronze
Mount Through Hole
Mounting Type Through Hole, Right Angle
Insulation Material Plastic
Shell Material Polybutylene Terephthalate (PBT)
Technical
Operating Temperature -40°C~85°C
Packaging Tray
Published 2011
Series MD-SG
Feature Ground
Pbfree Code yes
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
ECCN Code EAR99
Connector Type Receptacle, Female Sockets
Number of Positions 6
Voltage - Rated 100VAC 12VDC
Fastening Type Push-Pull
Contact Finish - Mating Silver
Current Rating (Amps) 1A 2A
Orientation Keyed
Shielding Shielded
Current Rating 2A
Shell Size - Insert Mini DIN
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Lead Free Lead Free
