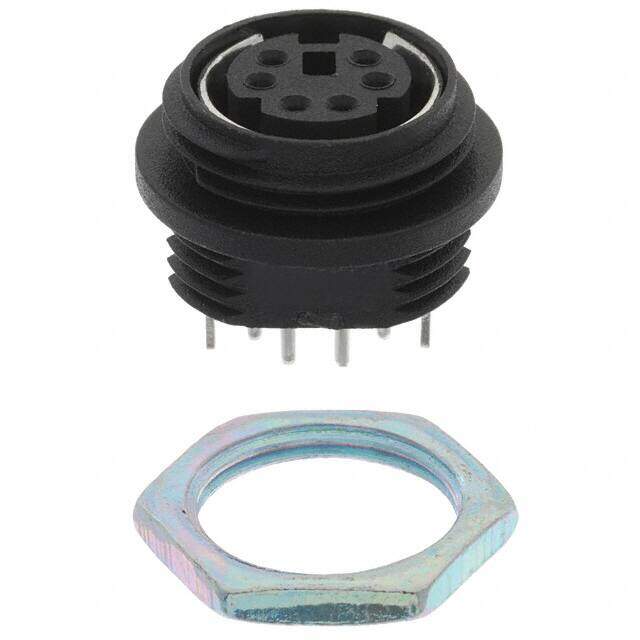

MD-60CV
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Circular Connectors
Description
CONN RCPT FMALE MINI DIN 6P SLDR
PDF
/
Buying Options
Total Price: USD $2.98
Unit Price: USD $2.9832
≥1 USD $2.9832
≥10 USD $2.71128
≥100 USD $2.568192
≥500 USD $2.50844
≥1000 USD $2.389094
≥3000 USD $2.090458
Inventory: 10554
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 15 Weeks
Physical
Contact Material Phosphor Bronze
Contact Plating Silver
Mount Bulkhead, Panel, Through Hole
Mounting Type Panel Mount, Through Hole
Mounting Feature Bulkhead - Front Side Nut
Insulation Material Plastic
Shell Material Polybutylene Terephthalate (PBT)
Technical
Operating Temperature -40°C~85°C
Packaging Bulk
Published 2011
Series MD-CV
Feature Ground
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Receptacle, Female Sockets
Number of Positions 6
Max Operating Temperature 85°C
Min Operating Temperature -40°C
Color Black
Voltage - Rated 100VAC 12VDC
Fastening Type Push-Pull
Contact Finish - Mating Silver
Current Rating (Amps) 1A 2A
Orientation Keyed
Shielding Unshielded
Current Rating 2A
Shell Size - Insert Mini DIN
Number of Contacts 6
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Lead Free Lead Free
