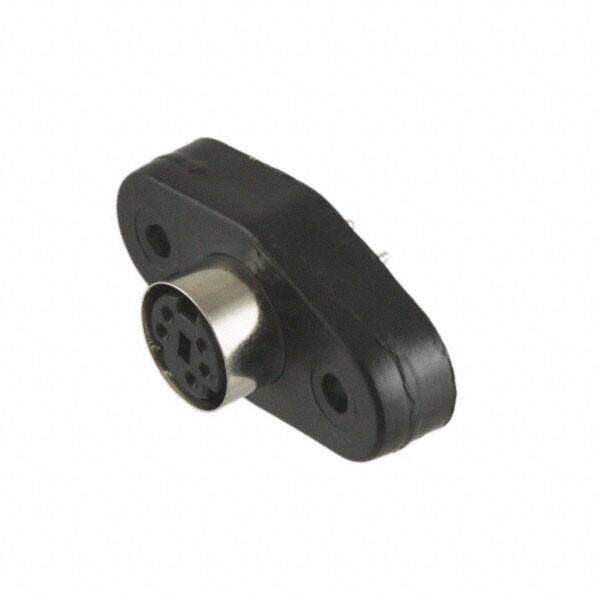

MD-50SP
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Circular Connectors
Description
CONN RCPT FMALE MINI DIN 5P SLDR
PDF
/
Buying Options
Total Price: USD $4.66
Unit Price: USD $4.658169
≥1 USD $4.658169
≥200 USD $1.859066
≥500 USD $1.79736
≥1000 USD $1.765851
Inventory: 7692
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Technical
Number of Contacts 5
Shell Size - Insert Mini DIN
Shell Finish Nickel
Current Rating 2A
Shielding Unshielded
Orientation Keyed
Current Rating (Amps) 1A 2A
Contact Finish - Mating Silver
Fastening Type Push-Pull
Voltage - Rated 100VAC 12VDC
Color Silver
Min Operating Temperature 5°C
Max Operating Temperature 80°C
Number of Positions 5
Connector Type Receptacle, Female Sockets
Termination Solder
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Series MD-SP
Published 2011
Packaging Bulk
Operating Temperature 5°C~80°C
Physical
Insert Material Polyamide (PA6), Nylon 6, Glass Filled
Shell Material Brass
Insulation Material Plastic
Mounting Feature Flange
Mounting Type Panel Mount
Mount Flanges, Panel
Contact Plating Silver
Contact Material Phosphor Bronze
Supply Chain
Factory Lead Time 11 Weeks
