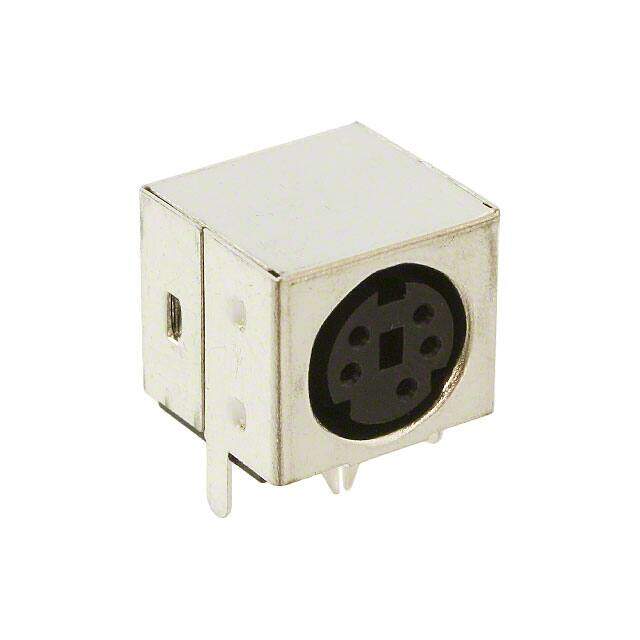

MD-50FC
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Circular Connectors
Description
5 Pin, Mini Circular Connector, Fully Shielded, Ferrite Filter
PDF
/
Buying Options
Total Price: USD $150.58
Unit Price: USD $5.577199
≥27 USD $5.577199
≥200 USD $2.225366
≥500 USD $2.151843
≥1000 USD $2.115082
Inventory: 1124
Minimum: 27
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Dimensions
Length - Termination 0.14 inch
Technical
Durability 1000 Cycles
Number of Ports 1
Polarization Key POLAR PIN POSITION
Contact Resistance 30mOhm
Contact Style RND PIN-SKT
Reliability COMMERCIAL
Shell Size - Insert Mini DIN
Current Rating 2A
Shielding Shielded
Orientation Keyed
Total Number of Contacts 5
Current Rating (Amps) 1A 2A
DIN Conformance YES
Contact Finish - Mating Silver
Subcategory DIN Connectors
Fastening Type Push-Pull
Voltage - Rated 100VAC 12VDC
Number of Positions 5
Connector Type Jack, Female Sockets
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Pbfree Code yes
Feature Board Guide, Board Lock, Ground
Series MD-FC
Published 2002
Packaging Tray
Operating Temperature -40°C~85°C
Physical
Shell Material Polybutylene Terephthalate (PBT)
Mounting Type Through Hole, Right Angle
Mount Through Hole
Contact Material Phosphor Bronze
Supply Chain
Factory Lead Time 9 Weeks
