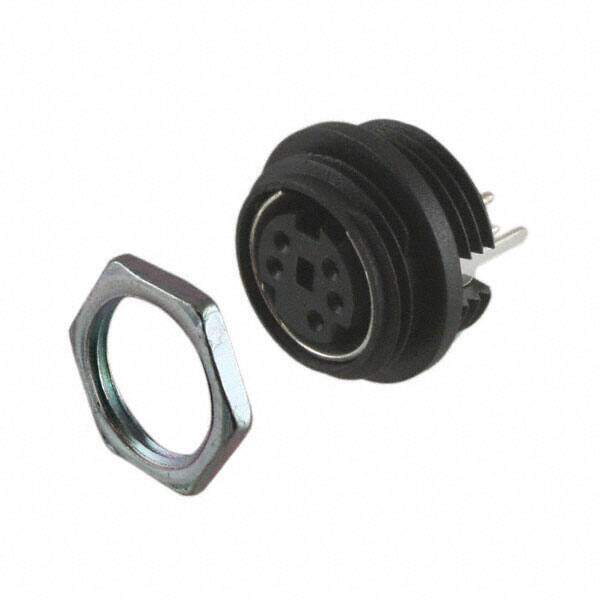

MD-50CV

CUI Devices
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Circular Connectors
Description CONN RCPT FMALE MINI DIN 5P SLDR
PDF
/
Inventory: 8213
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

Lead Free Lead Free
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0

Technical

Number of Contacts 5
Shell Size - Insert Mini DIN
Current Rating 2A
Shielding Unshielded
Orientation Keyed
Current Rating (Amps) 1A 2A
Contact Finish - Mating Silver
Fastening Type Push-Pull
Voltage - Rated 100VAC 12VDC
Color Black
Min Operating Temperature -40°C
Max Operating Temperature 85°C
Number of Positions 5
Connector Type Receptacle, Female Sockets
Termination Solder
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Obsolete
Feature Ground
Series MD-CV
Published 2002
Packaging Bulk
Operating Temperature -40°C~85°C

Physical

Shell Material Polybutylene Terephthalate (PBT)
Insulation Material Plastic
Mounting Feature Bulkhead - Front Side Nut
Mounting Type Panel Mount, Through Hole
Mount Bulkhead, Panel, Through Hole
Contact Plating Silver
Contact Material Phosphor Bronze

Supply Chain

Factory Lead Time 9 Weeks
