3282-8PG-528
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Circular Connectors
Description

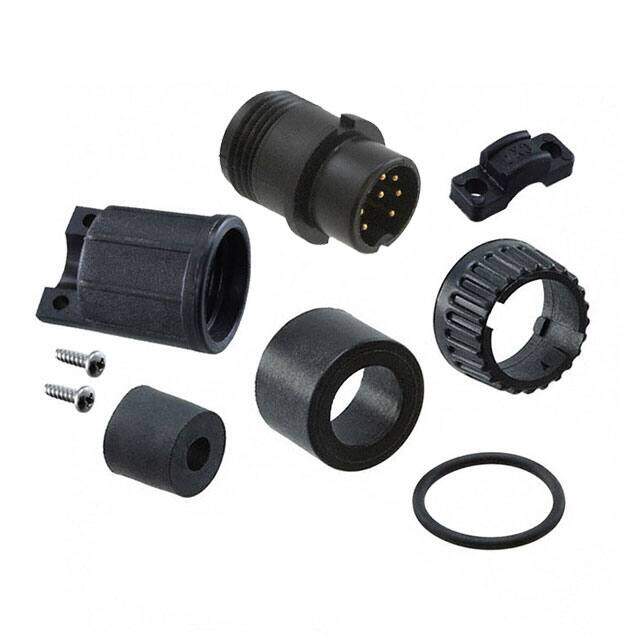

CONN PLUG MALE 8POS SOLDER CUP
PDF
/
Inventory: 9428
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 8 Weeks
Physical
Contact Material Brass
Mounting Type Free Hanging (In-Line)
Shell Material Polyamide (PA), Nylon
Backshell Material, Plating Polyamide (PA), Nylon
Technical
Operating Temperature -40°C~115°C
Packaging Bulk
Series Multi-Con-X?
Feature Backshell, Cable Clamp
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder Cup
Connector Type Plug, Male Pins
Number of Positions 8
Color Black
Voltage - Rated 600V
Fastening Type Bayonet Lock
Contact Finish - Mating Gold
Current Rating (Amps) 5.6A
Orientation Keyed
Shielding Unshielded
Ingress Protection Weathertight
Cable Opening 0.280 ~ 0.290 (7.11mm ~ 7.37mm)
Compliance
RoHS Status ROHS3 Compliant
