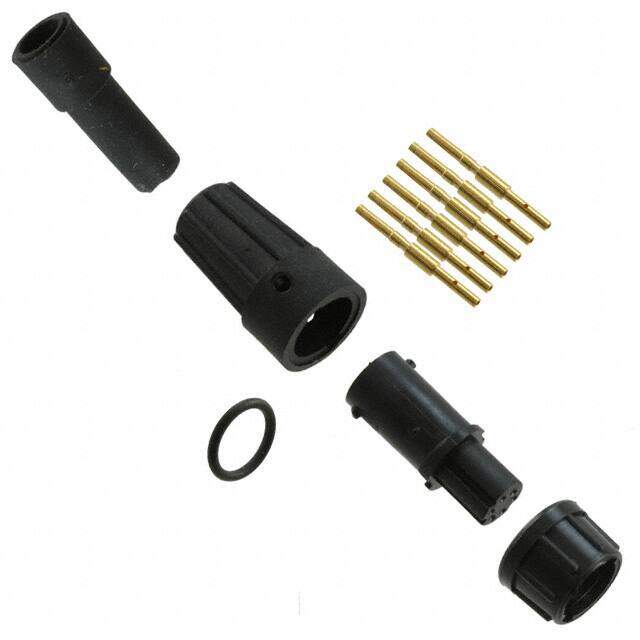

16980-6SG-522
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Circular Connectors
Description
Circular Connector
PDF
/
Buying Options
Total Price: USD $11.7
Unit Price: USD $11.6952
≥1 USD $11.6952
≥10 USD $10.36464
≥100 USD $9.965824
≥500 USD $9.567008
≥1000 USD $9.035576
≥3000 USD $8.238296
Inventory: 181
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 8 Weeks
Physical
Contact Material Copper Alloy
Mounting Type Free Hanging (In-Line)
Shell Material Thermoplastic
Backshell Material, Plating Thermoplastic
Technical
Operating Temperature -40°C~85°C
Packaging Bulk
Series Micro-Con-X?
Feature Backshell
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Crimp
Connector Type Plug, Female Sockets
Number of Positions 6
Color Black
Applications Data, Industrial, Instrumentation, Medical
Voltage - Rated 600VAC/DC
Fastening Type Bayonet Lock
Contact Finish - Mating Gold
Current Rating (Amps) 4A
Orientation A
Shielding Unshielded
Ingress Protection IP67 - Dust Tight, Waterproof
Cable Opening 0.220 ~ 0.230 (5.59mm ~ 5.84mm)
Compliance
Material Flammability Rating UL94 HB
RoHS Status ROHS3 Compliant
