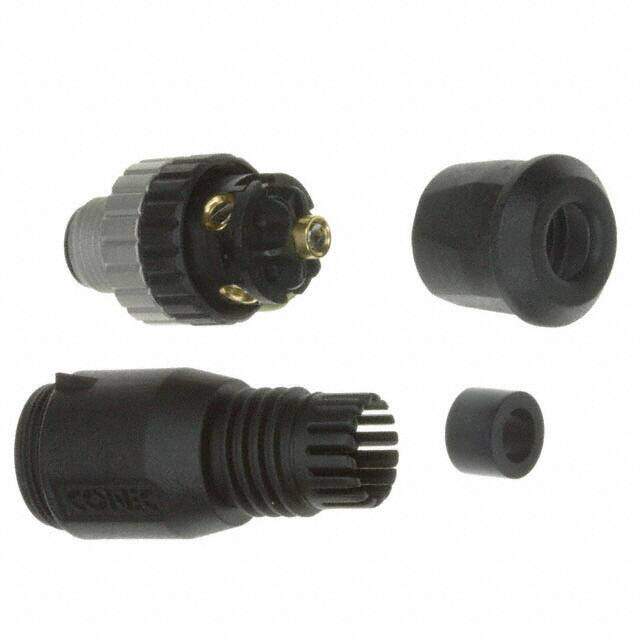

43-00101
RoHS
/
Package Axial
Category Connectors, Interconnects / Circular Connectors
Description
CONN RCPT MALE 5POS GOLD SCREW
PDF
/
Inventory: 988
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Ratings Dust Tight, IP67, Waterproof
RoHS Status RoHS Compliant
Material Flammability Rating UL94
Technical
Thread Size M12
Cable Opening 0.157 ~ 0.236 (4.00mm ~ 6.00mm)
Number of Contacts 5
Shell Size - Insert M12-5
Current Rating 4A
Ingress Protection IP67 - Dust Tight, Waterproof
Shielding Unshielded
Orientation A
Current Rating (Amps) 4A
Contact Finish - Mating Gold
Fastening Type Threaded
Voltage - Rated 60V
Color Black, Silver
Min Operating Temperature -30°C
Max Operating Temperature 85°C
Number of Positions 5
Connector Type Receptacle, Male Pins
Termination Screw
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Feature Backshell
Series 43
Published 2009
Packaging Bulk
Operating Temperature -30°C~85°C
Physical
Backshell Material, Plating Polyamide (PA6), Nylon 6, Glass Filled
Insert Material Polyamide (PA6), Nylon 6
Shell Material Polyamide (PA6), Nylon 6, Glass Filled
Package / Case Axial
Mounting Type Free Hanging (In-Line)
Mount Free Hanging
Contact Plating Gold
Contact Material Copper Zinc
