43-00095
RoHS
/
Package /
Category Connectors, Interconnects / Circular Connectors
Description

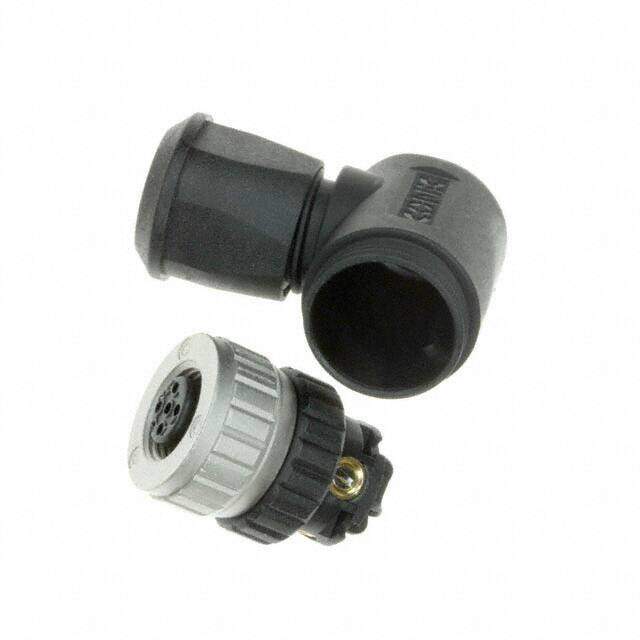

CONN PLUG 4POS INLINE SKT RA M12
PDF
/
Inventory: 3579
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Contact Material Copper Zinc
Mount Free Hanging
Mounting Type Free Hanging (In-Line), Right Angle
Shell Material Polyamide (PA6), Nylon 6, Glass Filled
Insert Material Polyamide (PA6), Nylon 6
Backshell Material, Plating Polyamide (PA6), Nylon 6, Glass Filled
Technical
Operating Temperature -30°C~85°C
Packaging Bulk
Published 2009
Series 43
Feature Coupling Nut
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Screw
Connector Type Plug, Female Sockets
Number of Positions 4
Color Black, Silver
Voltage - Rated 250V
Fastening Type Threaded
Contact Finish - Mating Gold
Orientation A
Shielding Unshielded
Ingress Protection IP67 - Dust Tight, Waterproof
Current Rating 4A
Shell Size - Insert M12-4
Cable Opening 0.157 ~ 0.236 (4.00mm ~ 6.00mm)
Thread Size M12
Compliance
Material Flammability Rating UL94
RoHS Status RoHS Compliant
Ratings Dust Tight, IP67, Waterproof
