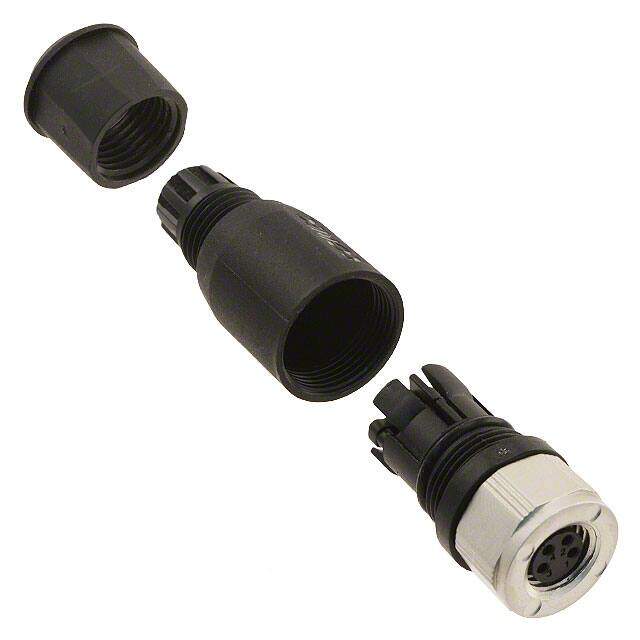

42-00004
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Circular Connectors
Description
CONN PLUG FMALE 4POS GOLD SPRING
PDF
/
Inventory: 1781
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 18 Weeks
Physical
Contact Material Copper Zinc
Mount Free Hanging
Mounting Type Free Hanging (In-Line)
Shell Material Zinc Die Cast
Housing Material Zinc
Insert Material Polyamide (PA6), Nylon 6, Glass Filled
Backshell Material, Plating Polyamide (PA6), Nylon 6, Glass Filled
Technical
Operating Temperature -30°C~85°C
Packaging Bulk
Published 2011
Series 42
Feature Backshell, Coupling Nut
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Spring Type
Connector Type Plug, Female Sockets
Number of Positions 4
Color Black, Silver
Voltage - Rated 30V
Fastening Type Threaded
Contact Finish - Mating Gold
Orientation A
Shielding Unshielded
Ingress Protection IP67 - Dust Tight, Waterproof
Current Rating 3A
Shell Finish Nickel
Shell Size - Insert M8-4
Contact Gender Female
Cable Opening 0.157 ~ 0.217 (4.00mm ~ 5.50mm)
Thread Size M8
Compliance
Material Flammability Rating UL94
RoHS Status ROHS3 Compliant
Ratings Dust Tight, IP67, Waterproof
