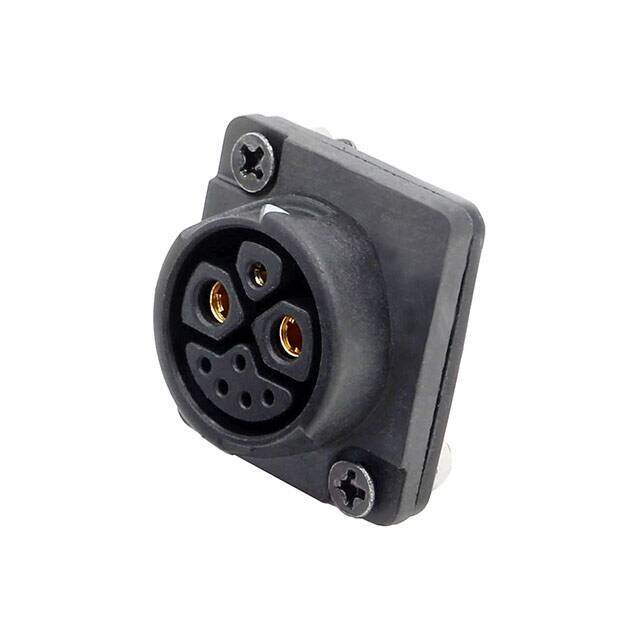

24305636-01
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Circular Connectors
Description
LARGE SERIES 2+1+5PIN FRONT PANE
PDF
/
Buying Options
Total Price: USD $9.86
Unit Price: USD $9.8648
≥1 USD $9.8648
≥10 USD $8.55096
≥100 USD $8.272
Inventory: 452
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 7 Weeks
Physical
Contact Material Copper Alloy
Mounting Type Panel Mount
Mounting Feature Flange
Shell Material Polyamide (PA), Nylon
Insert Material Polyamide (PA), Nylon
Backshell Material, Plating Polyamide (PA), Nylon
Technical
Operating Temperature -45°C~105°C
Packaging Bulk
Series Large
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder Cup
Connector Type Receptacle, Male Pins
Number of Positions 8
Color Black
Applications Communication Systems, Industrial, Lighting, Marine
Voltage - Rated 250VAC
Fastening Type Push-Twist
Contact Finish - Mating Gold
Current Rating (Amps) 5A 15A 50A
Orientation Keyed
Shielding Unshielded
Ingress Protection IP67 - Dust Tight, Waterproof
Compliance
RoHS Status ROHS3 Compliant
