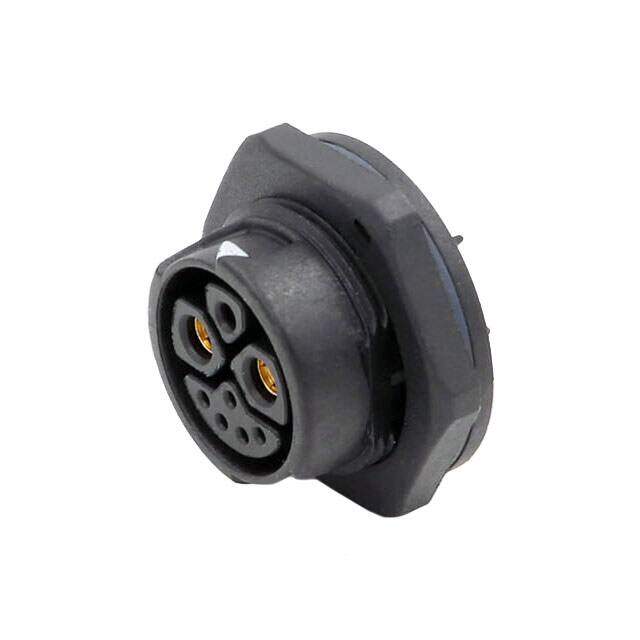

24305635-01
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Circular Connectors
Description
LARGE SERIES 2+1+5PIN FRONT PANE
PDF
/
Buying Options
Total Price: USD $14.04
Unit Price: USD $14.036
≥1 USD $14.036
≥10 USD $12.16424
≥100 USD $10.025664
≥500 USD $8.688909
Inventory: 582
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 7 Weeks
Physical
Contact Material Brass, Phosphor Bronze
Mounting Type Panel Mount
Mounting Feature Bulkhead - Rear Side Nut
Shell Material Polyamide (PA), Nylon
Insert Material Polyamide (PA66), Nylon 6/6
Technical
Operating Temperature -45°C~105°C
Packaging Bulk
Series Large
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder Cup
Connector Type Receptacle, Female Sockets
Number of Positions 8 (5 + 3 Power)
Color Black, Blue
Applications Communication Systems, Industrial, Lighting, Marine
Voltage - Rated 250VAC
Fastening Type Push-Twist
Contact Finish - Mating Gold
Current Rating (Amps) 5A 15A 50A
Orientation Keyed
Shielding Unshielded
Ingress Protection IP67 - Dust Tight, Waterproof
Compliance
RoHS Status ROHS3 Compliant
